Chroma 62060DC-100
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 600 V DC |
| Output Current Range | 0 – 100 A DC |
| Maximum Output Power | 60,000 W (60 kW) |
| Input Voltage | 3-Phase, 200/208 VAC or 380/400/415 VAC, 50/60 Hz |
| Voltage Regulation (Load) | ≤ 0.05% + 20 mV |
| Current Regulation (Load) | ≤ 0.05% + 20 mA |
| Output Voltage Ripple & Noise (rms) | ≤ 150 mV rms |
| Programming Accuracy (Voltage) | ≤ 0.05% + 100 mV |
| Interface / Communication | GPIB, RS-232, USB, Ethernet (LAN) standard; CAN Bus optional |
| Cooling Method | Forced air cooling (internal fans) |
Chroma 62060DC-100 Options:
- 62060DC-100 - A620039 - GPIB Interface
- 62060DC-100 - A620045 - CAN Interface
- 62060DC-100 - 14187 - SoftPanel
| Model | 62060DC-100 |
|---|

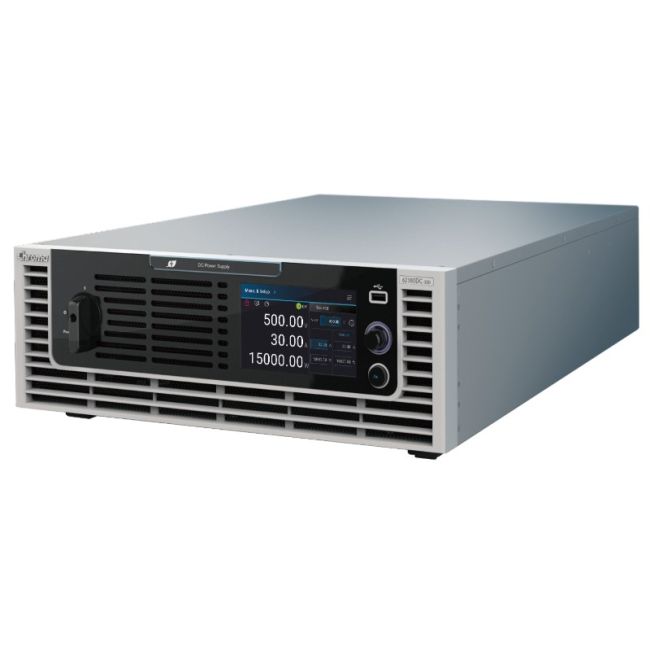

Chroma 62060DC-100 Programmable Bidirectional DC Power Supply
The Chroma 62060DC-100 Programmable Bidirectional DC Power Supply is designed to provide stable and reliable DC power for testing various electronic devices and components. It's bidirectional capabilities allow it to source and sink power, making it suitable for testing energy storage systems. It also offers advantages for automated test system integration and industrial and telecom applications. Chroma 62060DC-100 Programmable Bidirectional DC Power Supply is equipped with 100 programmable user settings through List Mode. When combined with the Softpanel, you can conduct complex tests with simple clicks of the mouse.
Chroma 62060DC-100 Programmable Bidirectional DC Power Supply offers a wider coverage of low voltage/high cur and high voltage/low cur DUTs. It has a high-speed CV dynamic response slope that can be controlled up to 180V/ms, which is applicable to the electrical characteristics tests of many vehicle guidelines. This power system has multiple safety protections and is suitable for long-term use in both R&D and production lines. Chroma 62060DC-100 Programmable Bidirectional DC Power Supply can easily be used in any region of the world due to its wide input range of 200-480 Vac and an active PFC low-cur harmonic feed to grid, reducing power consumption, power system configuration, and ambient temperature changes under high-power testing. Control options include digital USB, LAN, CANbus, GPIB as well as analog APG interfaces.
Specifications for the Chroma 62060DC-100 Programmable Bidirectional DC Power Supply Include:
| Voltage | 0~100V |
| Current | 180A |
| Power | 6000W |
| Output Noise & Ripple (rms) | 25 mV / 150mA |
