Keysight (Agilent) RP7943A
| Attribute | Value |
|---|---|
| Probe Type | Passive Voltage Probe |
| Bandwidth | 500 MHz |
| Attenuation Ratio | 10:1 |
| Input Impedance | 10 MΩ |
| Input Capacitance | 9.5 pF |
| Maximum Input Voltage | 300 V CAT II |
| Rise Time | 700 ps |
| Cable Length | 1.2 m |
| Compensation Range | 15 pF to 18 pF |
| Compatible Oscilloscopes | Keysight InfiniiVision and Infiniium Series Oscilloscopes |
Keysight (Agilent) RP7943A Options:
- RP7943A - UK6 - Commercial calibration with test results data
| Model | RP7943A |
|---|

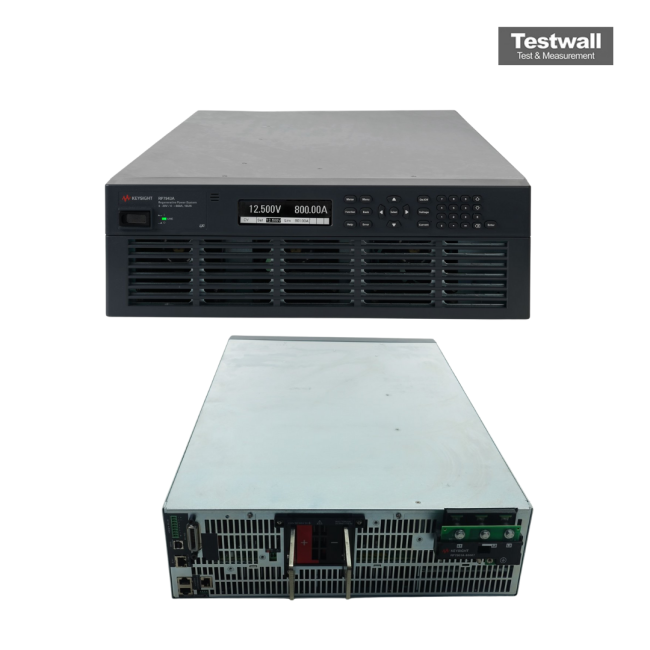

Keysight (Agilent) RP7943A Regenerative DC Power Supply
The Keysight RP7943A regenerative power system is a bi-directional, regenerative DC power supply with highly integrated safety features that protect both your people and your device under test. In addition, by combining the seamless source and load functionality into a compact 3U-high package, not only do you save energy but also floor space and integration time. With efficiency of more than 80%, the RP7943A helps you reduce energy consumption with less electricity usage when souring or sinking and less heat dissipation when sinking.
The Keysight RP7943A power supplies' autoranging output characteristic makes it much more flexible than rectangular, or traditional, output characteristic power supplies because they expand the power curve, giving the user more voltage and cur combinations in one power supply. Through programable resistance, the RP7943A DC sources simulate the effects of internal resistance of the battery, enabling them to emulate the operation of batteries in diffe charge states. The Keysight RP7943A power supplies comes standard with GPIB, Ethernet/LAN, USB 2.0 giving you the flexibility to use your I/O interface of choice today and safeguard your test setup for the future.
Specifications for the Keysight (Agilent) RP7943A Regenerative DC Power Supply Include:
| Voltage Range | 0 to 20V |
| Cur Range | 0 to ± 800A |
| Total Power | 10kW |
| Resistance Programming Range | 0 to 0.049 Ω |
