Keysight (Agilent) RP7961A
| Attribute | Value |
|---|---|
| Product Family | RP7900 Series Regenerative Power System |
| Module Type | Regenerative Module / Energy Recovery Unit |
| Maximum Power | 1800 W |
| Input Voltage Range | 200 V to 240 V AC |
| Output Voltage | Compatible with RP7900 Series mainframe bus |
| Energy Recovery | Regenerates energy back to AC mains instead of dissipating as heat |
| Compatibility | Designed for use with Keysight RP7900 Series Regenerative Power System mainframe |
| Form Factor | Plug-in module for RP7900 Series mainframe |
| Cooling Method | Forced air cooling |
| Primary Application | Battery simulation, battery test, and regenerative load testing |
Keysight (Agilent) RP7961A Options:
- RP7961A - UK6 - Commercial calibration with test results data
| Model | RP7961A |
|---|

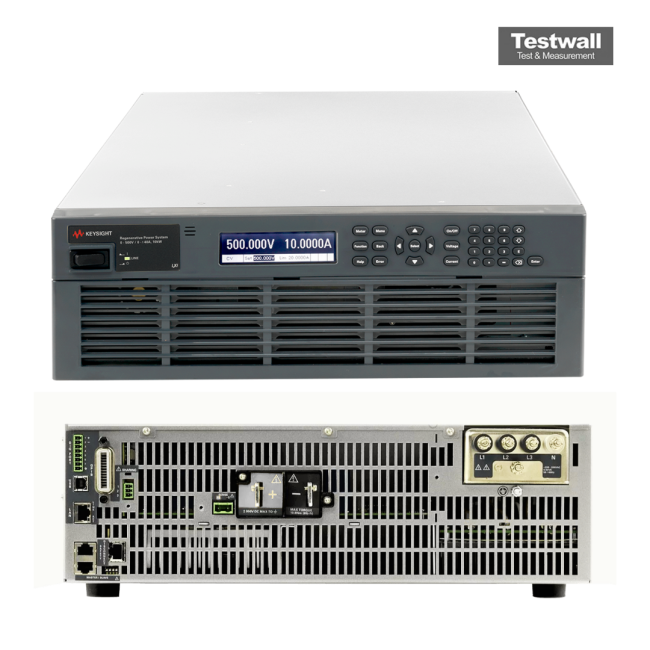

Keysight (Agilent) RP7961A Regenerative DC Power Supply
The Keysight RP7961A regenerative power system is a bi-directional, regenerative DC power supply with highly integrated safety features that protect both your people and your device under test. In addition, by combining the seamless source and load functionality into a compact 3U-high package, not only do you save energy but also floor space and integration time. With efficiency of more than 80%, the RP7961A helps you reduce energy consumption with less electricity usage when souring or sinking and less heat dissipation when sinking.
The Keysight RP7961A power supplies' autoranging output characteristic makes it much more flexible than rectangular, or traditional, output characteristic power supplies because they expand the power curve, giving the user more voltage and cur combinations in one power supply. Through programable resistance, the RP7961A DC sources simulate the effects of internal resistance of the battery, enabling them to emulate the operation of batteries in diffe charge states. The Keysight RP7961A power supplies comes standard with GPIB, Ethernet/LAN, USB 2.0 giving you the flexibility to use your I/O interface of choice today and safeguard your test setup for the future.
Specifications for the Keysight (Agilent) RP7961A Regenerative DC Power Supply Include:
| Voltage Range | 0 to 500V |
| Cur Range | 0 to ± 20A |
| Total Power | 5kW |
| Resistance Programming Range | 0 to 25 Ω |
