Keysight (Agilent) RP7983A
| Attribute | Value |
|---|---|
| Probe Type | Passive Voltage Probe |
| Bandwidth | 500 MHz |
| Attenuation Ratio | 10:1 |
| Input Impedance | 10 MΩ |
| Input Capacitance | 12.5 pF |
| Maximum Input Voltage | 300 V CAT II |
| Cable Length | 1.2 m |
| Compensation Range | 15 pF to 18 pF |
| Compatible Oscilloscopes | Keysight InfiniiVision and Infiniium Series Oscilloscopes |
| Connector Type | BNC |
Keysight (Agilent) RP7983A Options:
- RP7983A - UK6 - Commercial calibration with test results data
| Model | RP7983A |
|---|

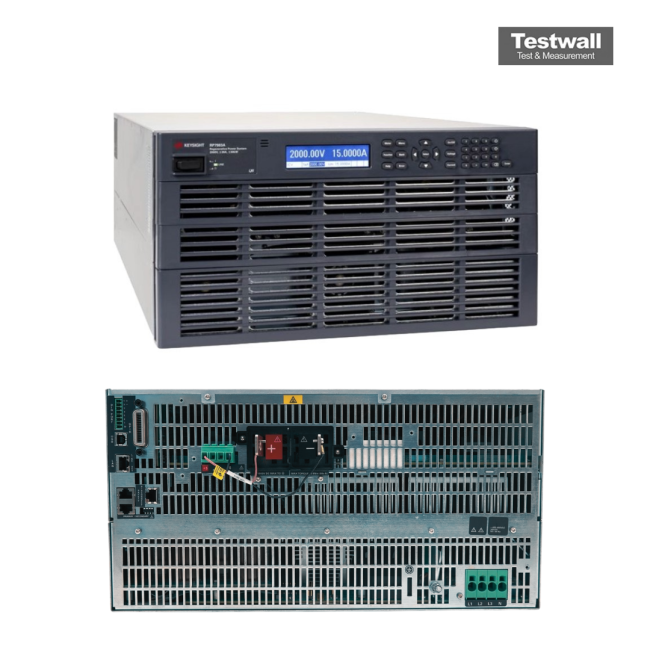

KEYSIGHT RP7983A Regenerative DC Power Supply
The Keysight RP7983A a bi-directional, regenerative DC power supply designed for testing high-voltage, high-power solutions in the Hybrid-Electric/Electric Vehicle (HEV/EV) market. With a compact 5U-high package, the RP7983A delivers up to 2000 V, 30 A, 30 kW. It operates in two-quadrant mode, serving as both a power source and regenerative electronic load. The regenerative capability allows energy to be cleanly returned to the grid, reducing costs associated with energy consumption and cooling.
The RP7983A features fast output speed, sub-millisecond command processing time, and the ability to create up to 600 kW power or loading through parallel connection. Additionally, it offers advanced measurement capabilities, battery emulation, and the ability to simulate power transients for comprehensive testing. The RP7983A supports paralleling with up to 20 units, providing flexibility and scalability in test setups. Standard interfaces include GPIB, Ethernet/LAN, and USB 2.0, making it versatile and easily controllable. Overall, the RP7983A is a powerful and efficient tool for accelerating test throughput and optimizing inverter MPPT algorithms in the evolving field of electric vehicle technology.
Specifications for the KEYSIGHT RP7983A Regenerative DC Power Supply Include:
| Voltage | 2000 V |
| Current | 30 A |
| Total Power | 30 kW |
| Voltage Accuracy | 0.03% + 150 mV |
