Keysight (Agilent)

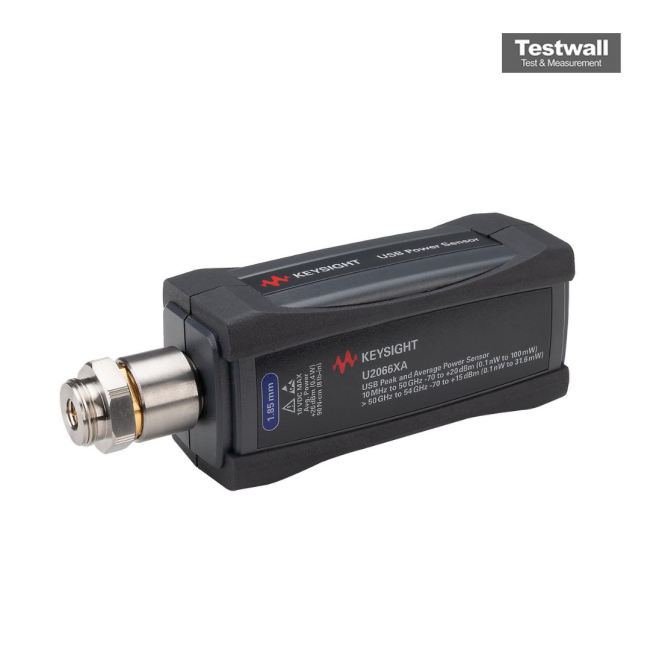

Keysight (Agilent) U2066XA
10MHz-54GHz Average + Peak USB Power Sensor
10 MHz to 54 GHz Frequency Range
1.19 to 2.22 max. SWR
5 MHz Video Bandwidth
≤100 ns Rise Time
1.85 mm male Connector
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 54 GHz |
| SWR | 1.19 to 2.22 max. |
| Video Bandwidth | 5 MHz |
| Rise Time | ≤100 ns |
| Connector | 1.85 mm male |
| Sensor Type | peak and average (diode), wide dynamic range, USB |
| Power Range | -70 to +20 dBm (to 50 GHz), -70 to +15 dBm (50 to 54 GHz) |
| Linearity | <1.0% (average mode), <1.3% (normal mode) |
| Measurement Speed | 50000 readings/s (average, real-time), 25000 readings/s (free run) |
| Compatible Meters | standalone via PC (BenchVue) |
| Interfaces | USB 2.0 (USB-TMC) |
| Dimensions | 44 × 34 × 133 mm |
The Keysight (Agilent) U2066XA is a high-performance USB power sensor with a wide frequency range of 10MHz to 54GHz and power measurement from -70dBm to +20dBm, with max. +15dBm above 50GHz.
It features a 1.85mm male connector, USB connectivity, internal zeroing, and automatic calibration, making it ideal for precise RF power measurements in advanced test environments.
Testwall can supply the used Keysight (Agilent) U2066XA, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U2066XA.
