Keysight (Agilent) U8489A
| Attribute | Value |
|---|---|
| Frequency Range | 100 MHz to 33 GHz |
| Power Range | -35 dBm to +20 dBm |
| Connector Type | 2.92 mm (K-type) male |
| Sensor Type | Thermocouple (Diode-based USB power sensor) |
| Interface | USB 2.0 |
| Measurement Speed | Up to 200 readings per second |
| Operating Temperature | 0°C to 55°C |
| VSWR (Maximum) | 1.35 (at frequencies up to 33 GHz) |
| Dynamic Range | 55 dB |
| Power Supply | Bus-powered via USB (no external power required) |
Keysight (Agilent) U8489A Options:
- U8489A - 200 - DC coupled option - DC to 120 GHz
- U8489A - 501 - 1.0 mm (f) to N-Type (m) adapter
- U8489A - 1A7 - ISO 17025 compliant calibration and test data
- U8489A - A6J - ANSI 540 compliant calibration and test data
- U8489A - UK6 - Commercial calibration certificate with test data
- U8489A - ABJ - Japan - Japanese user guide; printed
- U8489A - OB1 - English language user guide; printed
- U8489A - OBF - English language programming guide; printed
- U8489A - OBN - English language service guide; printed
| Model | U8489A |
|---|

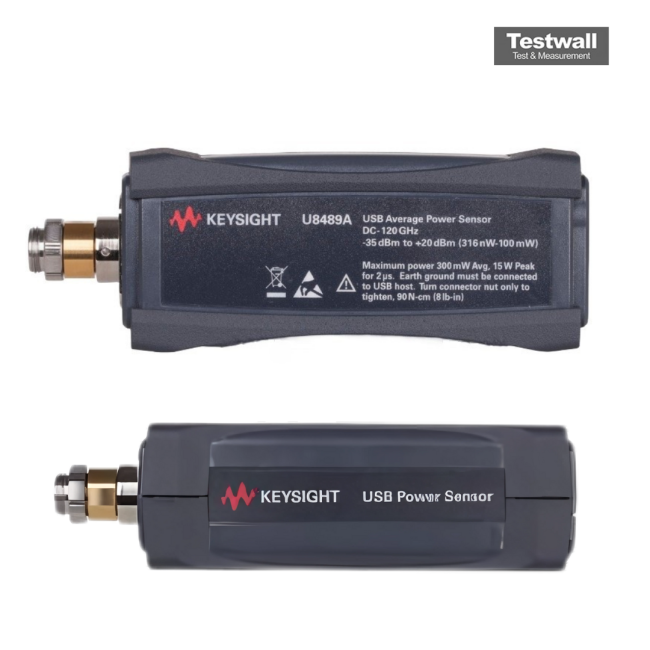

Keysight (Agilent) U8489A DC to 120 GHz USB Thermocouple Power Sensor
The Keysight Technologies U8489A DC to 120 GHz USB thermocouple power sensors provides the widest frequency range with 1 mm coaxial connector for the mmWave applications. It comes with a measurement speed of 900 readings/second and power linearity of less than 0.8%, providing high accuracy and stability to make average power measurements quickly and confidently. You can synchronize your measurement capture with it's built-in trigger in function, without the need of an external module. The Keysight Technologies U8489A USB thermocouple power sensors can be used as an accessory for other Keysight instruments, allowing these instruments to perform specific power measurement applications without needing to connect to a PC or laptop.
The Keysight Technologies U8489A DC to 120 GHz USB thermocouple power sensors plugs directly into your PC or USB-enabled Keysight instrument and gives you the capability to measure power without needing an external power meter or power supply. The sensors draw power directly from a USB port and do not need additional triggering modules to operate. The Keysight U8489A power sensor is supported by the Keysight BenchVue software and BV0007B power meter/sensor control and analysis app. The U8489A USB thermocouple power sensors compute this value in real time and at any given point, removing the need for manual MU calculations, shortening test time and providing highly accurate measurements.
Specifications for the Keysight (Agilent) U8489A DC to 120 GHz USB Thermocouple Power Sensor Include:
| Frequency Range | DC to 120 GHz |
| Power range | €“35 dBm to 20 dBm |
| Internal calibration accuracy | ± 0.52% (25 ± 10 °C) |
| Zeroing duration | 16 s |
