Keysight (Agilent)

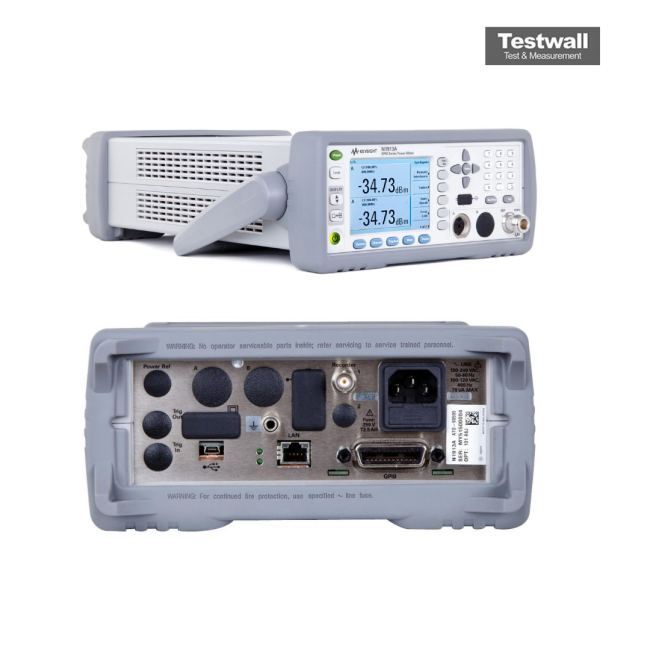

Keysight (Agilent) N1913A
EPM Series Single-Channel Power Meter
1 (up to 3 with USB sensors) Channels
9 kHz to 110 GHz Frequency Range
-70 to +44 dBm Power Range
50 MHz, 1 mW (0 dBm) ±0.4% Power Reference
average Measurement Types
| Attribute | Value |
|---|---|
| Channels | 1 (up to 3 with USB sensors) |
| Frequency Range | 9 kHz to 110 GHz |
| Power Range | -70 to +44 dBm |
| Power Reference | 50 MHz, 1 mW (0 dBm) ±0.4% |
| Measurement Types | average |
| Compatible Sensors | 8480 series, E-series E441x/E930x, N8480 series, U2000 series USB |
| Measurement Speed | 20 / 40 / 400 readings/s (400 with E-series sensors) |
| Accuracy | ±0.02 dB or ±0.5% absolute; ±0.04 dB or ±1.0% relative |
| Display | color LCD |
| Interfaces | GPIB, LAN (LXI), USB; Opt. VGA output |
| Dimensions | 212.6 × 88.5 × 348.3 mm |
| Weight | 3.6 kg |
Compatible power sensors
| Model | Frequency Range | Power Range | Sensor Type |
| 8481A | 10 MHz to 18 GHz | -30 to +20 dBm | thermocouple |
| 8481B | 10 MHz to 18 GHz | 0 to +44 dBm | thermocouple, with 25 W attenuator |
| 8481D | 10 MHz to 18 GHz | -70 to -20 dBm | diode, average |
| 8481H | 10 MHz to 18 GHz | -10 to +35 dBm | thermocouple, with 3 W attenuator |
| 8482A | 100 kHz to 4.2 GHz | -30 to +20 dBm | thermocouple |
| 8482B | 100 kHz to 4.2 GHz | 0 to +44 dBm | thermocouple, with 25 W attenuator |
| 8482H | 100 kHz to 4.2 GHz | -10 to +35 dBm | thermocouple, with 3 W attenuator |
| 8483A | 100 kHz to 2 GHz | -30 to +20 dBm | diode, average |
| 8485A | 50 MHz to 26.5 GHz (33 GHz with Opt. 033) | -30 to +20 dBm | thermocouple |
| 8485D | 50 MHz to 26.5 GHz (33 GHz with Opt. 033) | -70 to -20 dBm | diode, average |
| 8487A | 50 MHz to 50 GHz | -30 to +20 dBm | thermocouple |
| 8487D | 50 MHz to 50 GHz | -70 to -20 dBm | diode, average |
| R8486A | 26.5 to 40 GHz | -30 to +20 dBm | thermocouple, waveguide |
| R8486D | 26.5 to 40 GHz | -70 to -20 dBm | diode, average |
| Q8486A | 33 to 50 GHz | -30 to +20 dBm | thermocouple, waveguide |
| Q8486D | 33 to 50 GHz | -70 to -20 dBm | diode, average |
| V8486A | 50 to 75 GHz | -30 to +20 dBm (Opt. H02: -60 to +20 dBm) | diode, average, waveguide |
| W8486A | 75 to 110 GHz | -30 to +20 dBm | diode, average, waveguide |
| 8484A | 10 MHz to 18 GHz | -70 to -20 dBm | diode, average |
| E8486A | 60 to 90 GHz (Opt. 201: 54 to 95 GHz) | -30 to +20 dBm (Opt. 100), -60 to +20 dBm (Opt. 200/201) | diode, average, waveguide |
| E4412A | 10 MHz to 18 GHz | -70 to +20 dBm | diode, CW |
| E4413A | 50 MHz to 26.5 GHz | -70 to +20 dBm | diode, CW |
| E9300A | 10 MHz to 18 GHz | -60 to +20 dBm | diode, average, wide dynamic range |
| E9300B | 10 MHz to 18 GHz | -30 to +44 dBm | diode, average, wide dynamic range |
| E9300H | 10 MHz to 18 GHz | -50 to +30 dBm | diode, average, wide dynamic range |
| E9301A | 10 MHz to 6 GHz | -60 to +20 dBm | diode, average, wide dynamic range |
| E9301B | 10 MHz to 6 GHz | -30 to +44 dBm | diode, average, wide dynamic range |
| E9301H | 10 MHz to 6 GHz | -50 to +30 dBm | diode, average, wide dynamic range |
| E9304A | 9 kHz to 6 GHz | -60 to +20 dBm | diode, average, wide dynamic range |
| N8481A | 10 MHz to 18 GHz | -35 to +20 dBm | thermocouple |
| N8482A | 100 kHz to 6 GHz | -35 to +20 dBm | thermocouple |
| N8485A | 10 MHz to 26.5 GHz (33 GHz with Opt. 033) | -35 to +20 dBm | thermocouple |
| N8486AR | 26.5 to 40 GHz | -35 to +20 dBm | thermocouple, waveguide |
| N8487A | 50 MHz to 50 GHz | -35 to +20 dBm | thermocouple |
| N8488A | 10 MHz to 67 GHz (to 70 GHz typ.) | -35 to +20 dBm | thermocouple |
| U2000A | 10 MHz to 18 GHz | -60 to +20 dBm | USB average power sensor (diode) |
| U2001A | 10 MHz to 6 GHz | -60 to +20 dBm | USB average power sensor (diode) |
| U2004A | 9 kHz to 6 GHz | -60 to +20 dBm | USB average power sensor (diode) |
| U2000B | 10 MHz to 18 GHz | -30 to +44 dBm | USB average power sensor (diode) |
| U2001B | 10 MHz to 6 GHz | -30 to +44 dBm | USB average power sensor (diode) |
| U2000H | 10 MHz to 18 GHz | -50 to +30 dBm | USB average power sensor (diode) |
| U2001H | 10 MHz to 6 GHz | -50 to +30 dBm | USB average power sensor (diode) |
| U2002H | 50 MHz to 24 GHz | -50 to +30 dBm | USB average power sensor (diode) |
| U8481A | 10 MHz to 18 GHz (Opt. 100), DC to 18 GHz (Opt. 200) | -35 to +20 dBm | USB average power sensor (thermocouple) |
| U8485A | 10 MHz to 33 GHz (Opt. 100), DC to 33 GHz (Opt. 200) | -35 to +20 dBm | USB average power sensor (thermocouple) |
| U8487A | 10 MHz to 50 GHz | -35 to +20 dBm | USB average power sensor (thermocouple) |
| U8488A | 10 MHz to 67 GHz | -35 to +20 dBm | USB average power sensor (thermocouple) |
| U8489A | DC to 120 GHz | -35 to +20 dBm | USB average power sensor (thermocouple) |
Keysight (Agilent) N1913A Options:
- N1913A - 101 - Single-channel average power meter
- N1913A - 201 - Single-channel average power meter with VGA, trigger in/out, 1 front and 1 rear USB port
- N1913A - B01 - Without battery
- N1913A - B02 - With battery
- N1913A - C01 - Front calibrator, front sensor
- N1913A - C02 - Front calibrator, parallel front and rear sensor
- N1913A - C03 - Rear calibrator, parallel front and rear sensor
- N1913A - 200 - 436A and 437B code compatibility
- N1913A - 0B1 - Hard copy English language User's Guide and Installation Guide
- N1913A - 0BF - Hard copy English language Programming Guide
- N1913A - 0BW - Hard copy English language Service Guide
- N1913A - ABA - Hard copy English language User's Guide and Programming Guide
- N1913A - ABJ - Hard copy Japanese localization User's Guide and Programming Guide
- N1913A - 1A7 - Calibration + Uncertainties + Guardbanding
- N1913A - A6J - ANSI Z540-1-1994 Calibration
The Keysight (Agilent) N1913A EPM Series power meter supports frequency ranges from 9 kHz to 110 GHz (sensor dependent) and dynamic power levels from -70 to +44 dBm. It doubles the reading rate of E-Series sensors to 400 readings/sec, and integrates with GPIB, LAN LXI-C, and USB connectivity. Its high-resolution color display and numeric keypad enhance usability.
Ideal for precise average power measurements, it also supports up to three channels when connecting two additional U2000 Series sensors via optional USB ports, with automated sweep measurements via external trigger.
Testwall can supply the used Keysight (Agilent) N1913A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N1913A.
