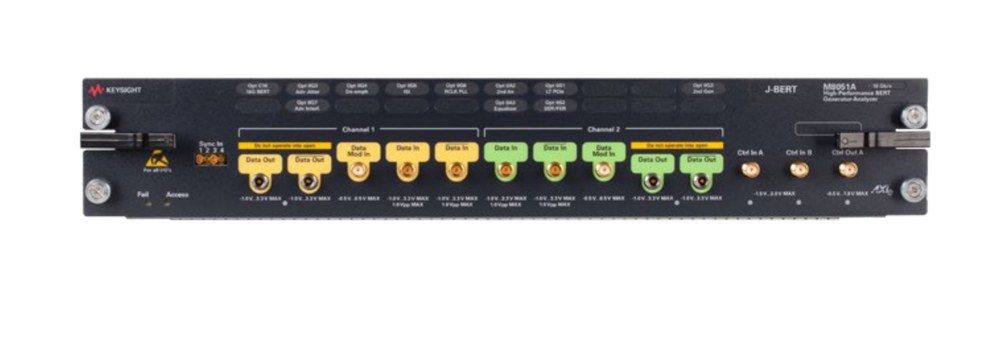

Keysight (Agilent) M8051A
| Attribute | Value |
|---|---|
| Max Data Rate | 8.5 Gb/s or 16 Gb/s (option dependent) |
| Channels | Up to 10 generator/analyser channels in 14-slot AXIe chassis (system) |
| De-emphasis | 8-tap, positive and negative |
| Jitter Injection | RJ, PJ1, PJ2, SJ, BUJ, level interference (CM/DM), SSC, clk/2 |
| ISI | Adjustable, per channel |
| Clock Recovery | Built-in CDR and equalisation |
| Form Factor | 2-slot AXIe module |
Keysight (Agilent) M8051A Options:
- M8051A-U16 - Upgrade to 16 Gb/s from G08/C08
- M8051A-UED - Upgrade generator (G08/G16) to BERT
- M8051A-UA2 - Second analyser channel
- M8051A-UA3 - Analyser equalisation
- M8051A-UG2 - Second pattern generator channel
- M8051A-UG3 - Advanced jitter sources
- M8051A-UG4 - Multi-tap de-emphasis
- M8051A-UG5 - Adjustable ISI
- M8051A-UG7 - Advanced interference sources
- M8051A-US6 - SAS-3 transmitter equalisation training
- M8051A-USX - 10GBASE-KR transmitter equalisation training
The M8051A is a 2-slot AXIe BERT module for the J-BERT M8020A high-performance BERT, providing pattern generator and analyser channels at up to 8.5 or 16 Gb/s. It extends an M8020A system so that up to 10 generator and analyser channels can be fitted in a 14-slot AXIe chassis, with clock synchronisation between all modules. It offers integrated calibrated jitter injection, 8-tap de-emphasis, adjustable ISI, built-in clock recovery and equalisation.
Clocked from an M8041A via the M8051A-801 clock distribution cable. Speed, BERT capability, second channel, jitter, de-emphasis, ISI and link-training features are licence-upgradeable; used for multi-lane PCIe, USB, SAS and 10GBASE-KR testing.
Testwall can supply the used Keysight (Agilent) M8051A, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Keysight (Agilent) M8051A.
