Keysight (Agilent)

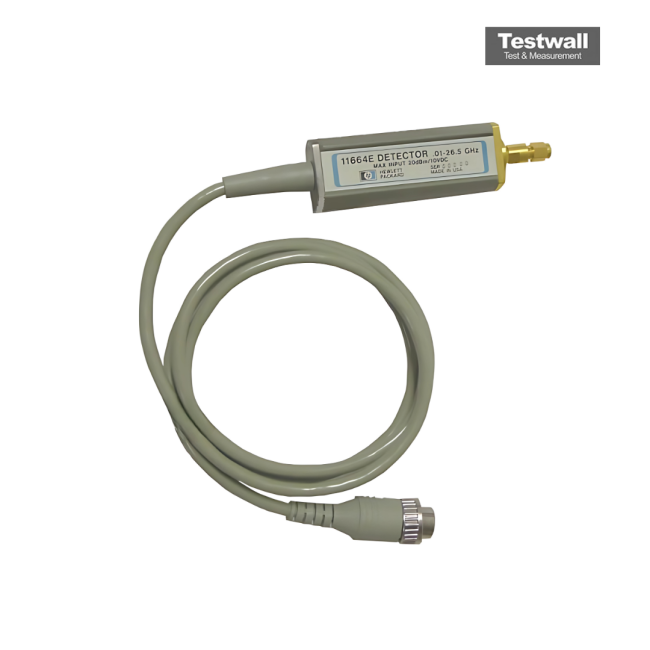

Keysight (Agilent) 11664E
0.01-26.5GHz Detector
DC to 18 GHz Frequency Range
Broadband Diode Detector Detector Type
Type-N (Female) Connector Type
-20 dBm to +20 dBm Dynamic Range
Negative Output Voltage Output Voltage
| Attribute | Value |
|---|---|
| Frequency Range | DC to 18 GHz |
| Detector Type | Broadband Diode Detector |
| Connector Type | Type-N (Female) |
| Dynamic Range | -20 dBm to +20 dBm |
| Output Voltage | Negative Output Voltage |
| VSWR | 2.0:1 maximum |
| Sensitivity | -20 dBm minimum detectable signal |
| Video Output Connector | BNC (Female) |
| Operating Temperature | 0°C to +55°C |
| Compatible Instruments | Keysight Spectrum Analyzers and Signal Generators |
| Model | 11664E |
|---|
The Keysight (Agilent) 11664E Coaxial Detector is designed for accurate RF signal detection in AC mode, specifically with the 8757, 8756, and 8755 series network analyzers. Operating over a frequency range of 10 MHz to 26.5 GHz, it uses precision 3.5 mm connectors and supports a dynamic input power range from +16 dBm to -60 dBm, making it suitable for a broad range of microwave measurements.
Ideal for scalar network analysis and swept frequency applications, the 11664E provides high sensitivity and stability for lab and field test scenarios where wide bandwidth and dynamic range are required.
Testwall can supply the used Keysight (Agilent) 11664E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 11664E.
