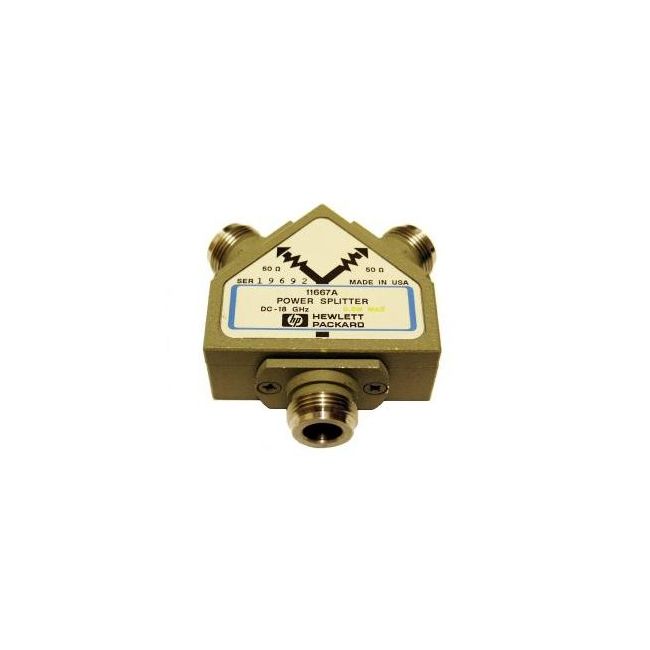

Keysight (Agilent) 11667A
DC-18GHz Power Splitter
DC to 18 GHz Frequency Range
2-Way Power Splitter Power Split Ratio
SMA (f) connectors Connector Type
50 Ohm Impedance
Less than 1.5 dB (DC to 18 GHz) Insertion Loss
€550.00 excl. VAT + free EU delivery
| Attribute | Value |
|---|---|
| Frequency Range | DC to 18 GHz |
| Power Split Ratio | 2-Way Power Splitter |
| Connector Type | SMA (f) connectors |
| Impedance | 50 Ohm |
| Insertion Loss | Less than 1.5 dB (DC to 18 GHz) |
| Isolation | Greater than 20 dB (DC to 18 GHz) |
| Maximum Input Power | 1 Watt (30 dBm) |
| VSWR | Less than 1.5:1 |
| Amplitude Tracking | Less than 0.3 dB |
| Operating Temperature | 0°C to +55°C |
| Model | 11667A |
|---|
The Keysight (Agilent) 11667A power splitter is ideal for wideband ratio measurements with the Keysight (Agilent) 8757 scalar network analyzer. Designed with a two-resistor configuration, it delivers low output SWR (1.33) at the auxiliary arm, optimizing source leveling and ratio accuracy. Covering DC to 18 GHz, it ensures tight output tracking—0.20 dB up to 8 GHz, 0.25 dB up to 18 GHz—with 7 dB insertion loss and 0.5 W maximum input power. It features Type N female connectors on all ports for consistent high-frequency performance.
Perfect for precise RF ratio and leveling tasks across wide frequency ranges with minimal measurement uncertainty.
Testwall can supply the used Keysight (Agilent) 11667A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 11667A.
