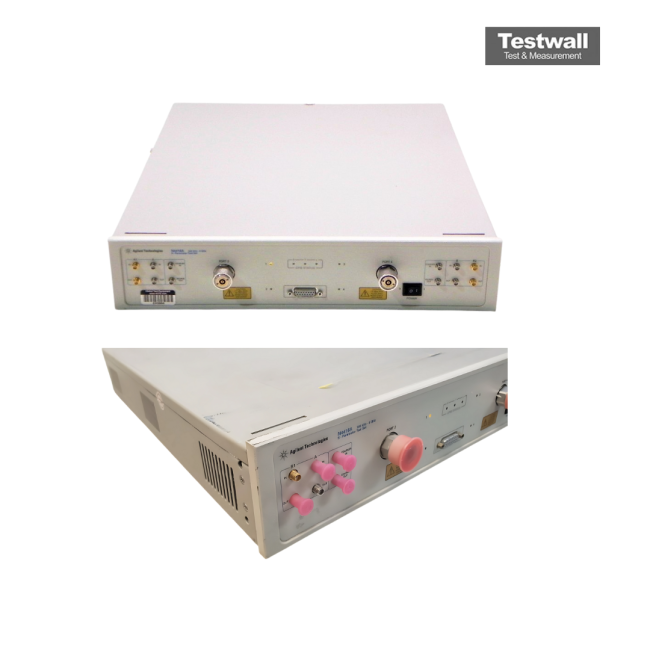

Keysight (Agilent) N4416A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 67 GHz |
| Test Set Type | Multiport Test Set (S-Parameter Test Set) |
| Number of Ports | 4 Ports |
| Compatible Instrument | Keysight PNA Series Network Analyzers (E8361A/C, N5250A) |
| Connector Type | 1.85 mm (Male) |
| Dynamic Range | Up to 100 dB |
| Power Level (Maximum Input) | +26 dBm |
| Interface | GPIB, USB, LAN (via compatible PNA controller) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Power Requirements | 100–240 VAC, 50/60 Hz (powered through compatible PNA network analyzer) |
| Model | N4416A |
|---|
The Keysight (Aglient) N4416A S‑parameter test set is essential for balanced‑measurement systems, featuring full four‑port vector error correction, mixed‑mode and conventional S‑parameter display, automatic calibration via the N4430A four‑port ECal module, and support for high‑speed digital interconnect and RF component analysis.
It integrates seamlessly with Keysight PNA Series (E8356A/E8357A/E8358A) vector network analyzers and relies on N4425A or N1930A software for calibration control, data re‑normalization, user‑defined displays, and optional time‑domain analysis.
Testwall can supply the used Keysight (Aglient) N4416A S‑parameter test set, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Aglient) N4416A S‑parameter test set.
