Keysight (Agilent) 11713A
| Attribute | Value |
|---|---|
| Frequency Range | DC to 26.5 GHz |
| Number of Switch Channels | 2 independent SPDT switch drivers |
| Output Voltage | 0 V to +15 V and 0 V to -15 V (dual supply) |
| Output Current | Up to 100 mA per channel |
| Control Interface | GPIB (IEEE-488) and BNC connectors |
| Compatible Attenuators/Switches | Designed for use with 8494, 8495, 8496 series attenuators and 87104/87106 switches |
| Power Supply Requirement | 100/120/220/240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 55°C |
| Dimensions (W x H x D) | 212.6 mm x 88.1 mm x 348.3 mm (8.4 in x 3.5 in x 13.7 in) |
| Weight | Approximately 2.5 kg (5.5 lbs) |
| Model | 11713A |
|---|

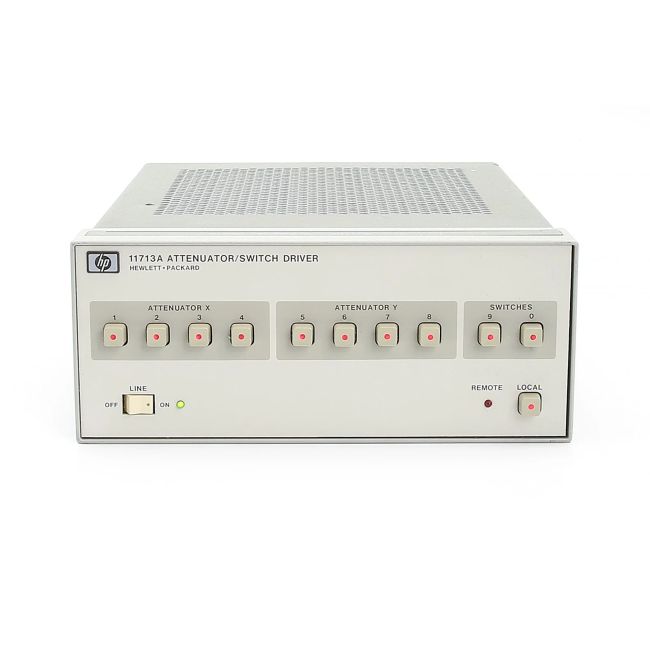

The Keysight (Agilent) 11713A Attenuator/Switch Driver enables GPIB or front-panel control of programmable attenuators and electromechanical switches. It supports dual-channel operation for Agilent 8494/5/6/7, 84904/6/7K/L attenuators and 8761/2/5 series switches, with fast switching under 10 ms.
It also controls up to 10 relays via +24V common and current sinking contacts, with built-in short-circuit protected power supply and plug-in drive cables for simplified connections.
Testwall can supply the used Keysight (Agilent) 11713A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 11713A.
