Keysight (Agilent) 87512A
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Measurement Type | Transmission/Reflection Test Set |
| Connector Type | Type-N (50 Ohm) |
| Impedance | 50 Ohm |
| Compatible Instruments | Keysight 8751A, 8752A, 8752B, 8752C Network Analyzers |
| Insertion Loss | Less than 3 dB typical |
| Maximum Input Power | 200 mW (23 dBm) |
| Test Port Output Power | Up to 0 dBm |
| Operating Temperature | 0°C to 55°C |
| Form Factor | External Test Set Accessory |
| Model | 87512A |
|---|

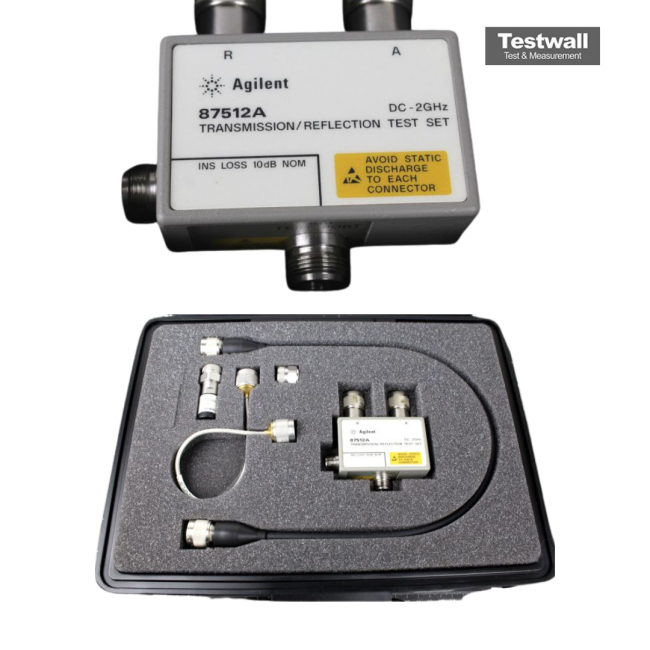

The Keysight (Agilent) 87512A Transmission/Reflection Test Kit enables precise analysis of 50 Ω devices from DC up to 2 GHz using an Agilent network analyzer. It features 50 Ω Type N(f) connectors for test ports and includes a precision short/load for accurate calibration. Designed specifically for compatibility with Keysight network analyzers, it ensures efficient measurement of one-way transmission and reflection parameters.
This test kit supports both 50 Ω and 75 Ω devices, ideal for applications requiring reliable one-directional S-parameter measurements within a 2 GHz bandwidth.
Testwall can supply the used Keysight (Agilent) 87512A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 87512A.
