Keysight (Agilent)
Keysight (Agilent) 11716A
Interconnect Kit Type N
DC to 26.5 GHz Frequency Range
SMA (f) to SMA (f) Connector Type
Step Attenuator Drive Cable Function
24 inches (61 cm) Cable Length
50 Ohm Impedance
| Attribute | Value |
|---|---|
| Frequency Range | DC to 26.5 GHz |
| Connector Type | SMA (f) to SMA (f) |
| Function | Step Attenuator Drive Cable |
| Cable Length | 24 inches (61 cm) |
| Impedance | 50 Ohm |
| VSWR | 1.35:1 maximum |
| Insertion Loss | 0.5 dB maximum at 26.5 GHz |
| Compatible Instruments | Keysight/Agilent signal generators and network analyzers requiring step attenuator drive |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Model | 11716A |
|---|

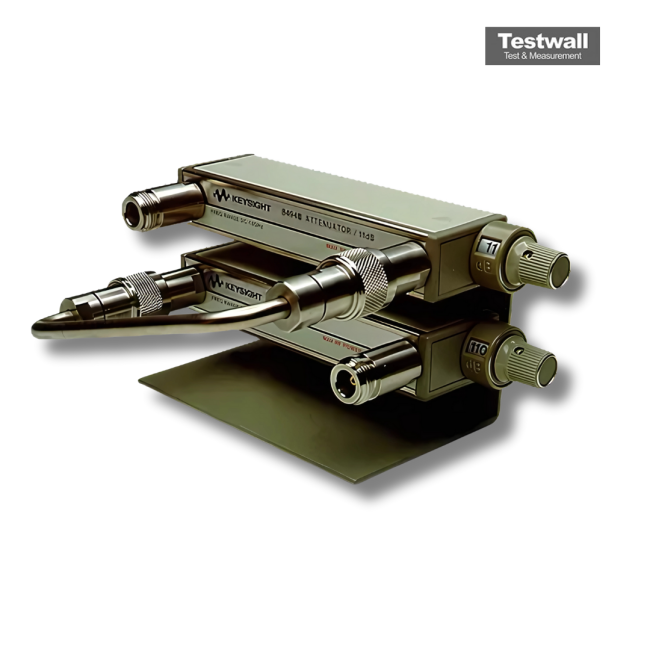

The Keysight (Agilent) 11716A Attenuator Interconnect Kit enables seamless series connection of any Keysight 8494/5/6/7 step attenuators with Type N connectors, allowing users to combine 1 dB and 10 dB step attenuators for a broader attenuation range with 1 dB resolution. The kit includes a rigid RF cable, mounting bracket, and all necessary hardware for secure and stable connections. Attenuators are ordered separately.
Ideal for lab and RF test setups requiring flexible attenuation configurations, the 11716A simplifies series integration for precise signal control and expanded dynamic range.
Testwall can supply the used Keysight (Agilent) 11716A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 11716A.
