Marconi IFR Aeroflex 2955R
| Attribute | Value |
|---|---|
| Frequency Range | 400 kHz to 1 GHz |
| RF Output Level Range | -137 dBm to +13 dBm |
| Frequency Resolution | 1 Hz |
| RF Power Measurement Range | -20 dBm to +60 dBm (with external power sensor) |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation, SSB |
| FM Deviation Range | Up to 150 kHz |
| AM Depth Range | 0% to 99.9% |
| Duplex Operation | Full duplex with built-in CTCSS/DCS encoder and decoder |
| Display | Large backlit LCD with intuitive menu-driven interface |
| Power Supply | 90 to 264 VAC, 47 to 63 Hz, with optional battery pack for portable operation |
| Model | 2955R |
|---|

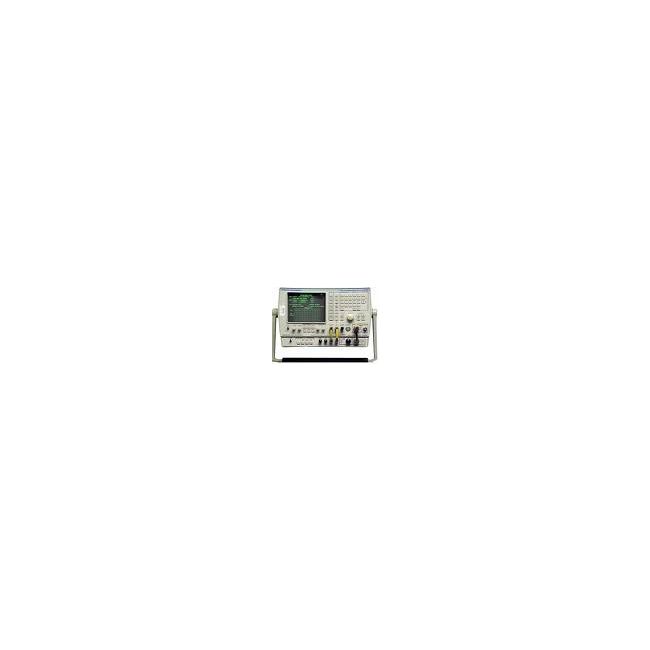

The Marconi IFR Aeroflex 2955R is a versatile transceiver analyzer covering 0.4 MHz to 1 GHz, supporting AM, FM, and PM modulation testing. It features an integrated CRT display and audio generator (50 Hz–15 kHz) for precise diagnostics. Dual RF/audio counters, distortion meters, and an oscilloscope enhance analysis capabilities.
Designed for in-depth RF testing, it supports duplex tuning for independent Tx/Rx assessment. A user-friendly soft-key interface with context-sensitive help simplifies operation.
Testwall can supply the used Marconi IFR Aeroflex 2955R, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Marconi IFR Aeroflex 2955R.
