Keysight (Agilent)
Keysight (Agilent) 16048D
Test Lead for LCR Meter DC to 30MHz
1.5 m (4.9 ft) Cable Length
Keysight 4284A, 4285A, 4294A, E4980A, E4981A, E4982A, E4990A LCR Meters and Impedance Analyzers Compatible Instruments
4-Terminal Pair (4TP) Connector Type
DC to 110 MHz Frequency Range
4-Terminal Pair Test Leads Test Lead Configuration
| Attribute | Value |
|---|---|
| Cable Length | 1.5 m (4.9 ft) |
| Compatible Instruments | Keysight 4284A, 4285A, 4294A, E4980A, E4981A, E4982A, E4990A LCR Meters and Impedance Analyzers |
| Connector Type | 4-Terminal Pair (4TP) |
| Frequency Range | DC to 110 MHz |
| Test Lead Configuration | 4-Terminal Pair Test Leads |
| Terminal Configuration | BNC Connectors |
| Primary Use | Connecting LCR meters and impedance analyzers to test fixtures or devices under test (DUT) |
| Measurement Capability | Impedance, LCR (Inductance, Capacitance, Resistance) measurements |
| Cable Type | 4-Terminal Pair Shielded Test Leads |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Model | 16048D |
|---|

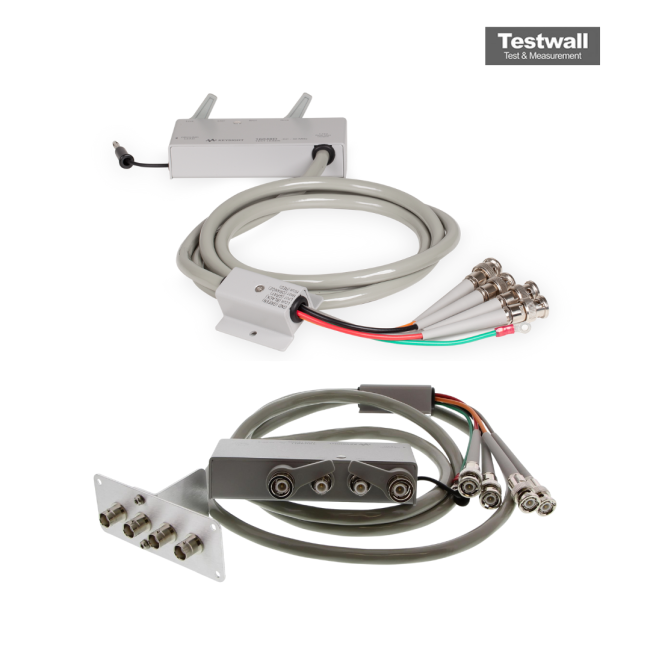

The Keysight (Agilent) 16048D is a 2-meter test lead with a direct 4-terminal pair connection, featuring four BNC (male) coaxial connectors for attaching user-fabricated test fixtures. It supports frequencies from DC to 30 MHz and applies up to ±40 V peak (AC+DC), with an operating temperature range of 0°C to 55°C.
This lead enables precise component testing under various conditions, allowing DC bias up to ±42V on the connected device.
Testwall can supply the used Keysight (Agilent) 16048D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16048D.
