Keysight (Agilent)
Keysight (Agilent) 16196C
Parallel Electrode SMD Test Fixture
SMD Test Fixture Fixture Type
LCR Meters and Impedance Analyzers (e.g., E4980A, E4990A, 4294A) Compatible Instruments
Chip Components (SMD/SMT) Component Type Supported
4-Terminal Pair (4TP) Electrode Configuration
DC to 3 GHz Frequency Range
| Attribute | Value |
|---|---|
| Fixture Type | SMD Test Fixture |
| Compatible Instruments | LCR Meters and Impedance Analyzers (e.g., E4980A, E4990A, 4294A) |
| Component Type Supported | Chip Components (SMD/SMT) |
| Electrode Configuration | 4-Terminal Pair (4TP) |
| Frequency Range | DC to 3 GHz |
| Component Size Compatibility | 0402 to 1206 (Imperial), including larger chip components |
| Connector Type | BNC Connectors |
| Measurement Parameters | Impedance (Z), Capacitance (C), Inductance (L), Resistance (R), and related parameters |
| Operating Temperature | 0°C to 55°C |
| Dimensions | Compact benchtop fixture design for laboratory use |
Keysight Technologies 16196C Options:
- 16196C - 710 - Add the magnifying lens and tweezers
| Model | 16196C |
|---|

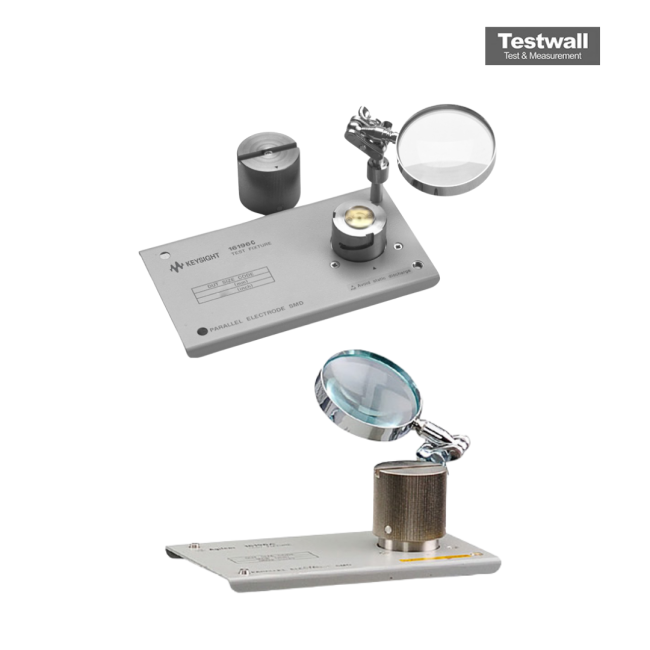

The used Keysight (Agilent) 16196C is a surface mount device (SMD) test fixture engineered for accurate impedance measurements up to 3 GHz. Custom-designed for specific SMD sizes, the 16196C ensures repeatable DUT placement and reliable contact integrity, minimizing user-induced errors and enhancing measurement consistency. It is optimized for high-frequency evaluation of SMD inductors and other passive components, where precision and repeatability are critical. Fully compatible with the Keysight E4991A RF Impedance/Material Analyzer, it is an essential tool in modern RF test setups.
Ideal for engineers seeking repeatable, high-frequency SMD characterization in advanced R&D environments.
Testwall can supply the used Keysight (Agilent) 16196C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16196C.
