Keysight (Agilent)
Keysight (Agilent) 16197A
Bottom Electrode SMD Test Fixture
SMD Test Fixture Fixture Type
Keysight LCR Meters and Impedance Analyzers (E4980A, E4981A, 4284A, 4285A, 4294A) Compatible Instruments
Up to 110 MHz Frequency Range
Chip components up to 10 mm x 10 mm Component Size Compatibility
Adjustable electrode gap for various SMD component sizes Electrode Gap
| Attribute | Value |
|---|---|
| Fixture Type | SMD Test Fixture |
| Compatible Instruments | Keysight LCR Meters and Impedance Analyzers (E4980A, E4981A, 4284A, 4285A, 4294A) |
| Frequency Range | Up to 110 MHz |
| Component Size Compatibility | Chip components up to 10 mm x 10 mm |
| Electrode Gap | Adjustable electrode gap for various SMD component sizes |
| Contact Type | 4-terminal pair (Kelvin) connection |
| Connector Type | BNC connectors |
| Operating Temperature | 0°C to 55°C |
| Calibration Support | Supports OPEN, SHORT, and LOAD calibration |
| Cable Length | 1 meter |
Keysight Technologies 16197A Options:
- 16197A - 001 - Add 0603 (mm)/0201 (inch) Device Guide Set
| Model | 16197A |
|---|

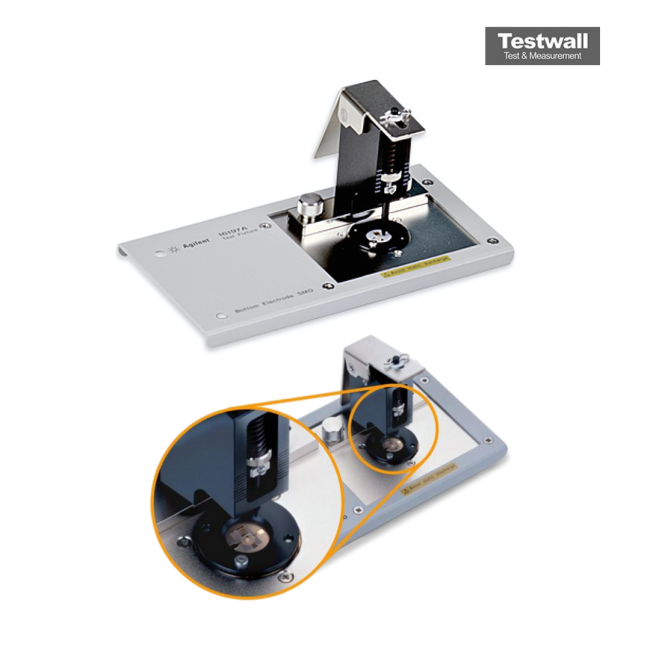

The used Keysight (Agilent) 16197A is a high-frequency SMD test fixture designed for accurate impedance evaluation of bottom-electrode SMD components. It provides stable and repeatable measurements up to 3 GHz and accommodates a wide range of device sizes—from 1005 (mm)/0402 (inch) to 3225 (mm)/1210 (inch). With option 001, the fixture also supports smaller 0603 (mm)/0201 (inch) SMDs through an additional device guide set.
Ideal for advanced component testing in R&D, quality assurance, and high-frequency characterization labs.
Testwall can supply the used Keysight (Agilent) 16197A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16197A.
