Keysight (Agilent) 16344A
SMD Test Fixture for LCR Meters and Impedance Analyzers Product Function
Keysight 4284A, 4285A, 4294A, E4980A, E4981A, and other LCR meters with 4-terminal pair ports Compatible Instruments
Surface Mount Devices (SMD) Component Type
4 mm Electrode Pitch
DC to 110 MHz Measurement Frequency Range
| Attribute | Value |
|---|---|
| Product Function | SMD Test Fixture for LCR Meters and Impedance Analyzers |
| Compatible Instruments | Keysight 4284A, 4285A, 4294A, E4980A, E4981A, and other LCR meters with 4-terminal pair ports |
| Component Type | Surface Mount Devices (SMD) |
| Electrode Pitch | 4 mm |
| Measurement Frequency Range | DC to 110 MHz |
| Connection Interface | 4-Terminal Pair (4TP) |
| Component Size Range | 0402 to 1812 (Imperial) SMD chip components |
| Electrode Material | Gold-plated electrodes for reliable low-resistance contact |
| Operating Temperature | 0°C to 55°C |
| Dimensions | Compact fixture design compatible with standard impedance analyzer test ports |
| Model | 16344A |
|---|

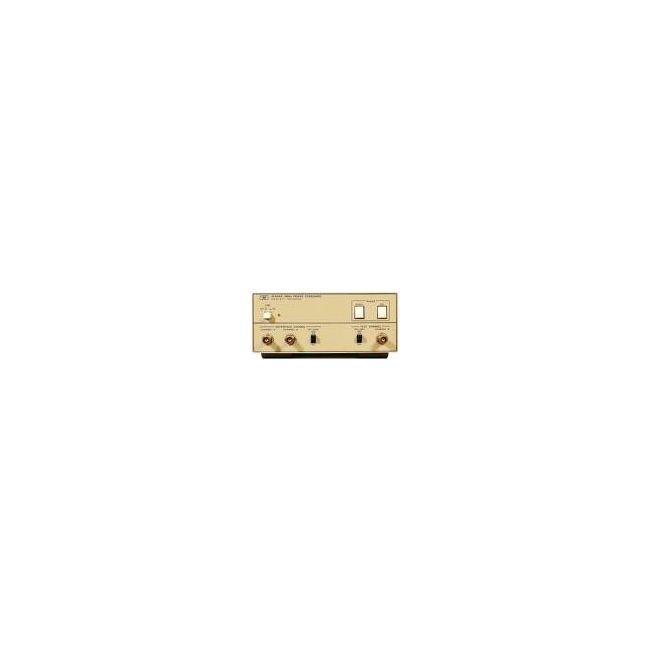

The Keysight (Agilent) 16344A 1 MHz Phase Standard is engineered for precise phase calibration of instruments. It features two front-panel 1 MHz sine wave outputs with stable amplitude and a phase shift adjustable from 0° to 360° in -22.5° steps. A rear-panel 1 MHz square wave output provides external reference for synchronization.
Designed for high-accuracy phase calibration, the 16344A supports precise and repeatable testing of phase-sensitive instruments.
Testwall can supply the used Keysight (Agilent) 16344A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16344A.
