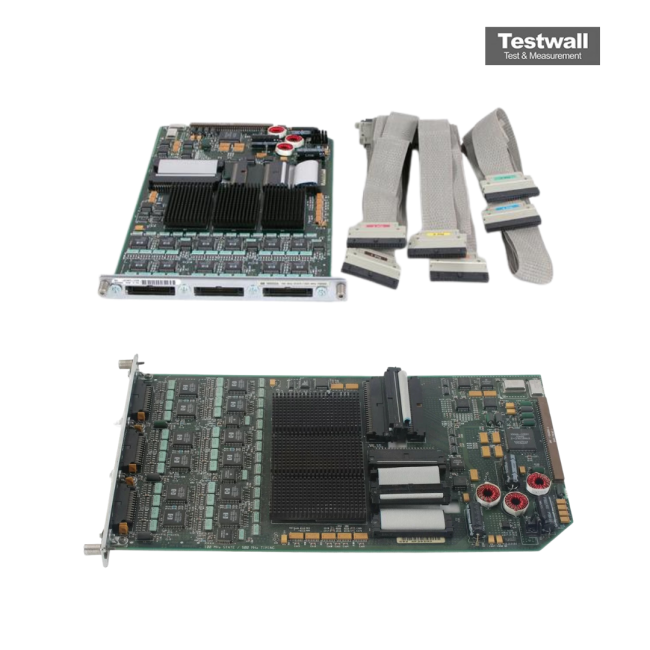

Keysight (Agilent) 16550A
102 Channel Input Module
68 Channels Channel Count
100 MHz Maximum State Analysis Speed
250 MHz (full channel), 500 MHz (half channel) Maximum Timing Analysis Speed
4K samples per channel (state), 1M samples per channel (timing) Memory Depth
3.5 ns Minimum Detectable Glitch
| Attribute | Value |
|---|---|
| Channel Count | 68 Channels |
| Maximum State Analysis Speed | 100 MHz |
| Maximum Timing Analysis Speed | 250 MHz (full channel), 500 MHz (half channel) |
| Memory Depth | 4K samples per channel (state), 1M samples per channel (timing) |
| Minimum Detectable Glitch | 3.5 ns |
| Setup/Hold Time | Adjustable in 500 ps increments |
| Threshold Voltage Range | -6.0 V to +6.0 V, programmable in 50 mV increments |
| Compatible Mainframe | HP/Agilent/Keysight 16500 Series Logic Analysis System Mainframe |
| Number of Pods | 5 Pods (with 2 clock channels per pod) |
| Input Impedance | 100 kΩ ± 2%, 8 pF typical |
| Model | 16550A |
|---|
The Keysight 16550A module offers 100 MHz state and 500 MHz timing analysis with simultaneous deep-channel capture up to 204 channels at 4M depth.
It supports time-correlated state and timing analysis on different channels, eliminating the need for special timing probes.
Testwall can supply the used Keysight 16550A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight 16550A
