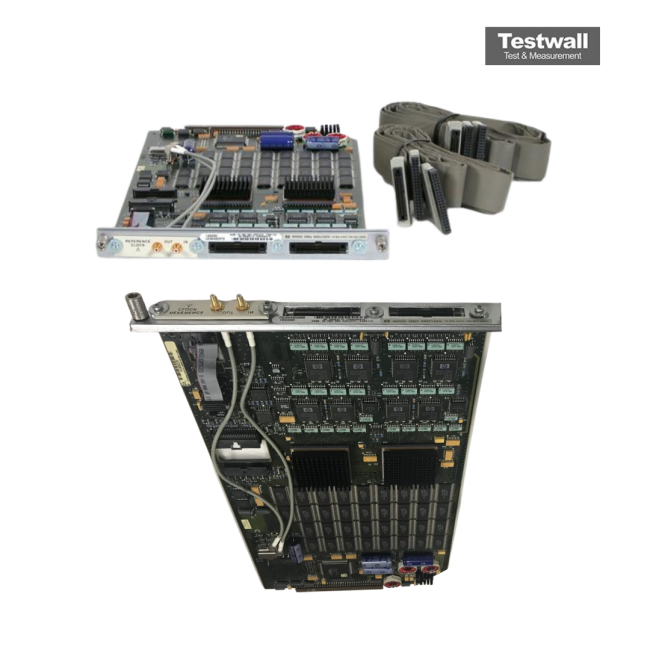

Keysight (Agilent) 16555D
| Attribute | Value |
|---|---|
| Channel Count | 68 Channels |
| Maximum Sample Rate | 500 MHz State / 1 GHz Timing |
| Memory Depth | 1M Samples per Channel |
| Compatible Mainframe | HP/Agilent/Keysight 16500 Series Logic Analysis System |
| Module Type | Logic Analyzer Module |
| Minimum Detectable Pulse Width | 2 ns |
| Threshold Voltage Range | -6.0 V to +6.0 V |
| Input Impedance | 100 kΩ, 8 pF |
| Maximum Input Voltage | ±40 V (DC + Peak AC) |
| Form Factor | Single-Slot Module Card |
| Model | 16555D |
|---|
The Keysight (Agilent) 16555D is a 110 MHz state and 500 MHz timing analysis module, designed to deliver simultaneous, time-correlated state and timing analysis across multiple channels. This powerful tool eliminates the need for special probes, enabling easy and direct observation of timing activity while maintaining accuracy and efficiency.
Perfect for mixed-signal debugging, the 16555D allows users to combine state and timing analysis effortlessly, ensuring seamless data acquisition and interpretation without extra configurations or hardware.
Testwall can supply the used Keysight (Agilent) 16555D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16555D.
