Keysight (Agilent)

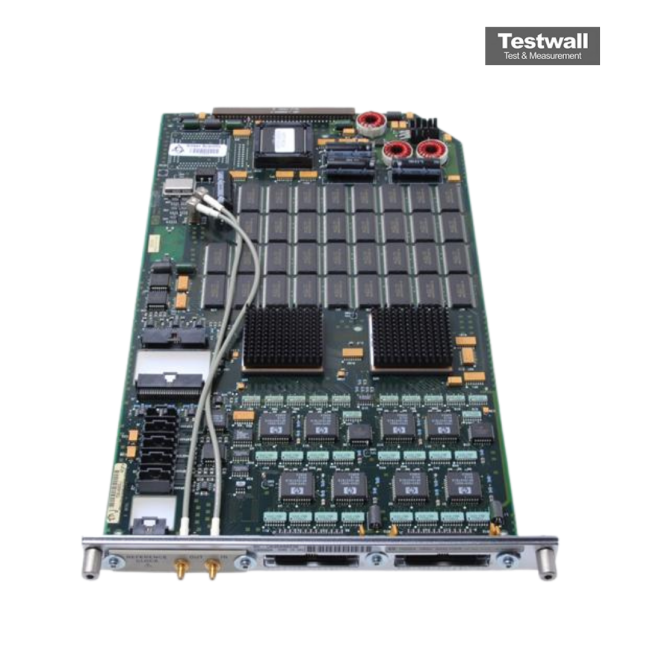

Keysight (Agilent) 16556A
68-Channel 100 MHz state Module
68 Channels Channel Count
100 MHz Maximum State Speed
400 MHz Maximum Timing Speed
1M Samples per Channel Memory Depth
HP/Agilent/Keysight 16500 Series Logic Analysis System Compatible Mainframe
| Attribute | Value |
|---|---|
| Channel Count | 68 Channels |
| Maximum State Speed | 100 MHz |
| Maximum Timing Speed | 400 MHz |
| Memory Depth | 1M Samples per Channel |
| Compatible Mainframe | HP/Agilent/Keysight 16500 Series Logic Analysis System |
| Module Type | Logic Analyzer Module |
| Number of Pods | 9 Pods |
| Input Voltage Threshold Range | -6.0 V to +6.0 V |
| Minimum Detectable Pulse Width | 2.5 ns |
| Form Factor | Plug-in Module Card |
| Model | 16556A |
|---|
The Keysight (Agilent) 16556D is a 68-channel module offering 100 MHz state and 400 MHz timing analysis. It supports simultaneous, fully time-correlated state and timing analysis across all channels without special probes.
Suitable for mixed-signal testing, this module ensures reliable state and timing data acquisition at high speeds and precision levels.
Testwall can supply the used Keysight (Agilent) 16556D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16556D.
