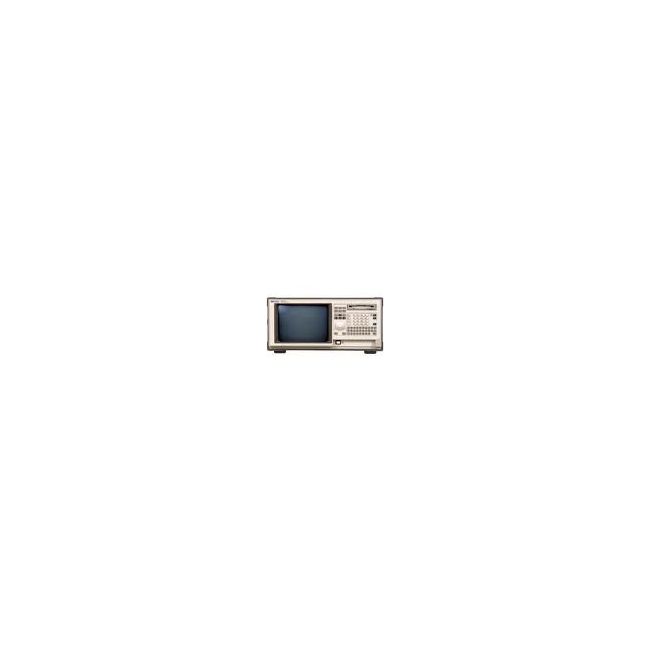

Keysight (Agilent) 1663E
| Attribute | Value |
|---|---|
| Number of Channels | 34 Channels |
| Logic Analyzer Channels | 34 Timing / 34 State Channels |
| Maximum Timing Analysis Speed | 100 MHz Full Speed Timing |
| Maximum State Analysis Speed | 25 MHz State Analysis |
| Memory Depth | 1K Samples per Channel |
| Display Type | Built-in CRT Display |
| Oscilloscope Channels | 2-Channel Oscilloscope Integrated |
| Oscilloscope Bandwidth | 100 MHz Oscilloscope Bandwidth |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Form Factor | Portable Benchtop Unit |
| Model | 1663E |
|---|
The Keysight (Agilent) 1663E Logic Analyzer offers 34 channels with 100 MHz state speed and 500 MHz timing speed. It features a 4 K deep memory, 2 GB hard drive, and 1.44 MB floppy drive. With VGA resolution and a color flat-panel display, it provides clear data visibility. Interface navigation is seamless via mouse or front panel, and PC-style keyboard input is supported. It includes Centronics, HP-IB, RS-232 ports, and LAN for remote operation.
This unit supports ASCII, PCX, TIFF, and EPS file formats and includes 23 predefined trigger sequences with graphical aids and plain language for simplified setup of powerful measurements.
Testwall can supply the used Keysight (Agilent) 1663E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 1663E.
