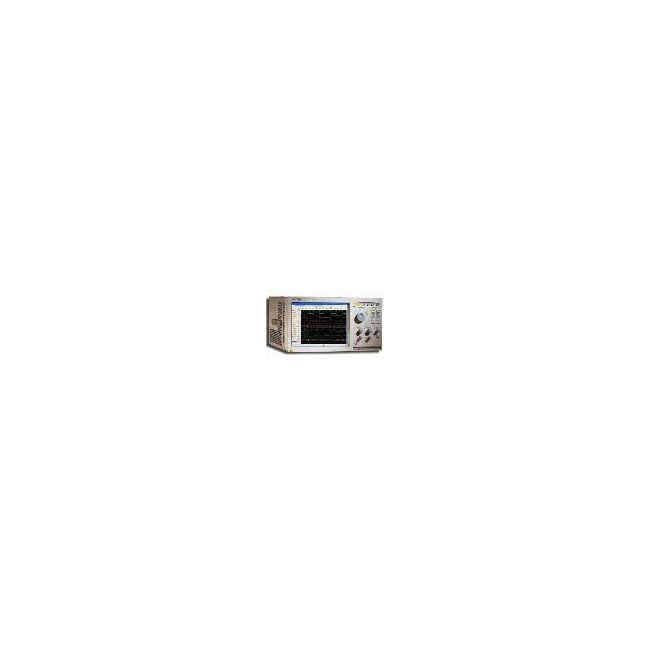

Keysight (Agilent) 16902A
| Attribute | Value |
|---|---|
| Form Factor | Portable/Modular Logic Analysis System |
| Number of Slots | 6 module slots |
| Display | 15-inch XGA color touch screen display |
| Operating System | Windows XP Embedded |
| Processor | Intel Pentium M processor |
| Storage | 40 GB hard disk drive |
| Memory | 512 MB RAM |
| Interface/Connectivity | USB, LAN (10/100Base-T), and GPIB ports |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Compatible Modules | Compatible with Keysight 16900 Series logic analyzer modules |
| Model | 16902A |
|---|
The Keysight (Agilent) 1690A offers 800 MHz timing analysis with 1 M deep memory, enabling detailed root-cause diagnostics even for temporally distant symptoms. It also supports 200 MHz state acquisition for precise synchronous measurements. With simple and quick triggers, users can easily configure signal-based events, and advanced triggers offer graphical customization for complex scenarios. Time-correlated measurements with oscilloscopes enhance analysis accuracy, while offline and PC-hosted viewing increase workspace efficiency.
This 136-channel logic analyzer supports IEEE 1394 connection and integrates seamlessly with PCs running Windows 2000 Professional and compatible processors. It provides versatile display resolution options and remote trace review capabilities.
Testwall can supply the used Keysight Technologies 1690A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight Technologies 1690A.
