Keysight (Agilent)
Keysight (Agilent) 16702A
Logic Analyser Mainframe
15-inch color display with 1024 x 768 resolution Display
Windows 98 SE / HP-UX compatible logic analysis operating environment Operating System
5 module slots for logic analyzer and oscilloscope modules Expansion Slots
Pentium III processor for high-speed data analysis and processing Processor
Built-in hard disk drive for waveform and data storage Storage
€900.00 excl. VAT + free EU delivery
| Attribute | Value |
|---|---|
| Display | 15-inch color display with 1024 x 768 resolution |
| Operating System | Windows 98 SE / HP-UX compatible logic analysis operating environment |
| Expansion Slots | 5 module slots for logic analyzer and oscilloscope modules |
| Processor | Pentium III processor for high-speed data analysis and processing |
| Storage | Built-in hard disk drive for waveform and data storage |
| Interface Ports | LAN (Ethernet), RS-232, parallel port, USB, and keyboard/mouse ports |
| Power Requirements | 100–240 VAC, 50/60 Hz, automatic voltage selection |
| Compatible Modules | Compatible with 16700-series logic analyzer and oscilloscope measurement modules |
| Dimensions (W x H x D) | Approximately 425 mm x 265 mm x 500 mm (mainframe chassis) |
| Weight | Approximately 20 kg (44 lbs) without modules installed |
| Model | 16702A |
|---|

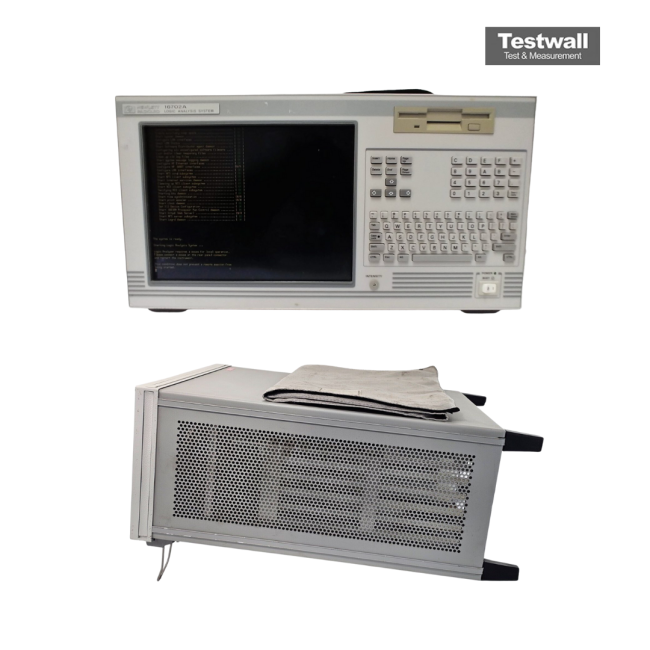

The Keysight (Agilent)16702A is a 5-slot logic analyzer mainframe equipped with a 4 GB hard drive, 1.44 MB 3.5" floppy drive, built-in 10.3" color display, and 2 emulation probe slots. It features SVGA output, Ethernet, parallel and SCSI-2 ports, keyboard, and a 3-button mouse. This unit supports modular acquisition or pattern generator cards for tailored system analysis. Optional upgrades include a 17" monitor, CD-ROM drive, 18 GB external data drive, and a performance package with 160 MB RAM and 1600×1200 video resolution.
Designed for scalable system debugging, it is ideal for development environments requiring versatile input/output interfaces and real-time analysis.
Testwall can supply the used Keysight (Agilent) 16702A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16702A.
