Tektronix
Tektronix HFS9010
10 Number of Channels
TTL, ECL, and Variable Output Voltage Levels
DC to 100 MHz Frequency Range
10 ns Timing Resolution
Up to 8192 vectors Pattern Depth
| Attribute | Value |
|---|---|
| Number of Channels | 10 |
| Output Voltage Levels | TTL, ECL, and Variable |
| Frequency Range | DC to 100 MHz |
| Timing Resolution | 10 ns |
| Pattern Depth | Up to 8192 vectors |
| Output Drive Current | ±32 mA |
| Interface | GPIB (IEEE-488) |
| Clock Source | Internal and External |
| Operating Temperature | 0°C to 50°C |
| Power Requirements | 100–240 V AC, 50/60 Hz |
| Model | HFS9010 |
|---|

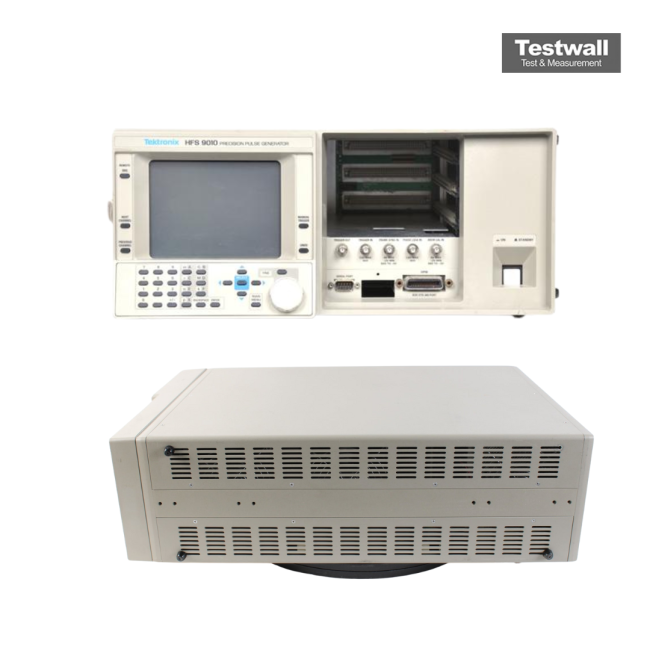

The Tektronix HFS9010 is a high-precision GPIB-programmable pulse generator designed for applications requiring accurate timing control, supporting repetition rates up to 630 MHz and timing resolution of 1 ps.
Its fully digital multichannel architecture allows for precise channel skew adjustments, with remote control enabled through an IEEE‑488 interface for seamless automation in test environments.
Testwall can supply the used Tektronix HFS9010, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix HFS9010.
