Keysight (Agilent) 1670A
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum State Acquisition Speed | 100 MHz |
| Maximum Timing Acquisition Speed | 500 MHz |
| Memory Depth per Channel | 4K Samples (State Mode), 8K Samples (Timing Mode) |
| Display Type | Built-in Monochrome CRT Display |
| Input Voltage Threshold Range | -6.0V to +6.0V |
| Minimum Detectable Pulse Width | 2 ns |
| Power Requirements | 100/120/220/240 VAC, 48-66 Hz |
| Interface/Connectivity | HP-IB (IEEE 488) Interface |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Model | 1670A |
|---|

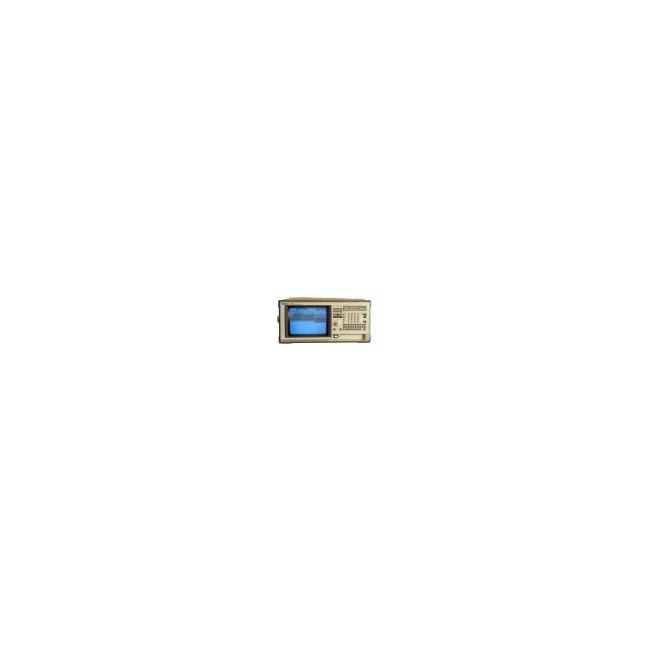

The Keysight (Agilent) 1670A is a benchtop logic analyzer equipped with 136 channels, enabling precise analysis of embedded microprocessor systems. It features 64K acquisition memory, upgradeable to 500K, allowing in-depth examination of processor mnemonics and timing relationships. Integrated mass storage via internal hard drive and a 3.5-inch disk drive supporting DOS and LIF formats enhances data handling capabilities.
Ideal for hardware and software debugging, the 1670A includes a LAN interface with both 10Base-T and 10Base-2 connectors, streamlining integration within networked environments.
Testwall can supply the used Keysight (Agilent) 1670A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 1670A.
