Keysight (Agilent) 16751A
| Attribute | Value |
|---|---|
| Number of Channels | 68 Channels |
| Maximum State Speed | 400 MHz |
| Maximum Timing Speed | 800 MHz |
| Memory Depth | 2 Msa/Channel |
| Module Type | Logic Analyzer Module |
| Compatible Mainframe | Keysight 16700 Series Logic Analysis System |
| Threshold Voltage Range | -6.0 V to +6.0 V |
| Setup/Hold Time | Adjustable in 100 ps increments |
| Time Interval Accuracy | ±(0.01% + 1 ns) |
| Operating Temperature | 0°C to 55°C |
| Model | 16751A |
|---|

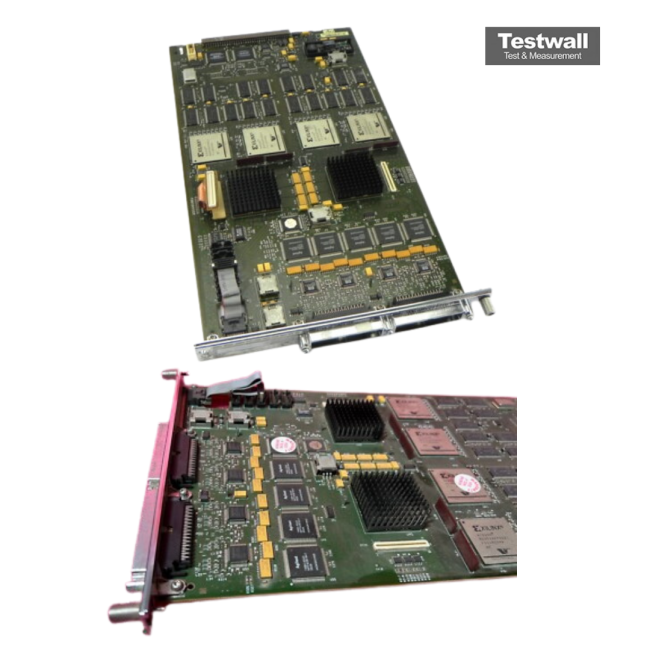

The Keysight (Agilent) 16751A Logic Analysis Module offers 400 MHz state speed and 800 MHz timing speed, delivering high-resolution signal capture. It features 16 M memory depth and supports 68 channels per module, allowing extensive parallel data acquisition. This unit shares full compatibility with the 16751B in configuration files and data handling, making it ideal for integrated, multi-module logic analysis systems.
It is suitable for high-performance logic debugging, offering deep memory and reliable synchronization across channels. Modules 16751A and 16751B can be used together seamlessly.
Testwall can supply the used Keysight (Agilent) 16751A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16751A.
