Keysight (Agilent) 16752A
| Attribute | Value |
|---|---|
| Number of Channels | 68 Channels |
| Maximum Memory Depth | 4 Mb per Channel |
| Maximum State Speed | 400 MHz |
| Maximum Timing Speed | 2 GHz (Half Channel), 1 GHz (Full Channel) |
| Timing Zoom Sample Rate | 4 GHz |
| Module Type | Logic Analyzer Module |
| Compatible Mainframes | 16700 Series, 16900 Series Logic Analysis Systems |
| Threshold Accuracy | ±(100 mV + 3% of threshold setting) |
| Minimum Detectable Pulse Width | 500 ps |
| Operating Temperature Range | 0°C to 55°C |
Keysight Technologies 16752A Options:
- 16752A - 0B3 - Add service manual
- 16752A - 1BP - MIL-STD-45662A calibration with test data
- 16752A - W17 - Convert standard warranty to one-year on-site warranty
| Model | 16752A |
|---|

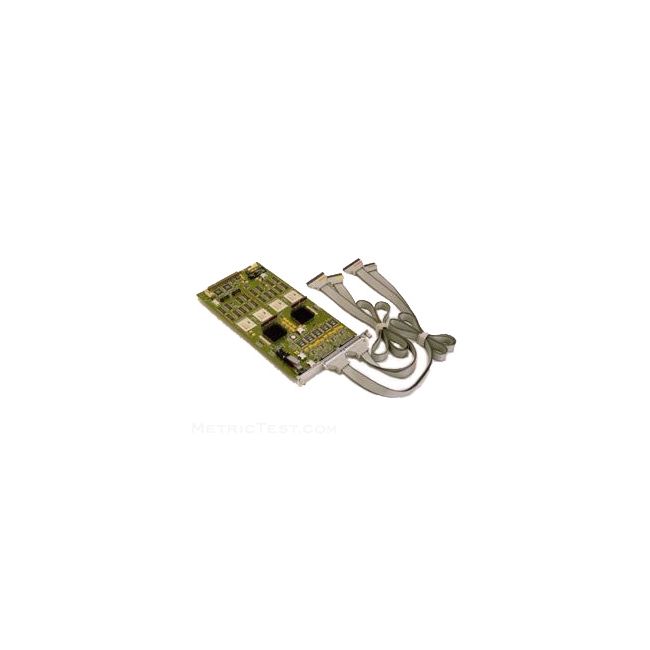

The Keysight (Agilent) 16752A logic analysis module offers 400 MHz state speed, 800 MHz timing speed, and a deep 32 M memory. Each module supports 68 channels, allowing high-performance data capture and analysis. It is fully compatible with the newer 16752B, making it ideal for multi-module system configurations.
The 16752A enables advanced debugging and system validation with seamless integration into test setups. It’s particularly suited for engineers handling large data sets in high-speed environments.
Testwall can supply the used Keysight (Agilent) 16752A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16752A.
