Keysight (Agilent) 1681AD
| Attribute | Value |
|---|---|
| Number of Channels | 34 Channels |
| Timing Resolution | 4 ns |
| Maximum Clock Speed | 250 MHz |
| Memory Depth | 64 Kbits per Channel |
| Threshold Voltage Range | -6.0 V to +6.0 V |
| Input Impedance | 100 kΩ, 8 pF |
| Glitch Capture | Minimum 8 ns Glitch Detection |
| Interface | GPIB (IEEE-488) |
| Display | Built-in CRT Display |
| Power Requirements | 100/120/220/240 VAC, 48-66 Hz |
| Model | 1681AD |
|---|

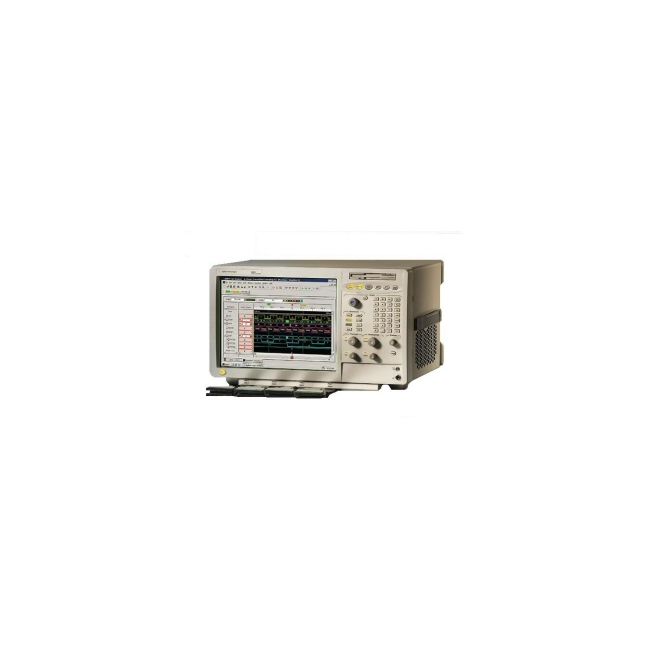

The Keysight (Agilent) 1681AD features 800 MHz timing and 4 M deep memory, making it ideal for tracing problems across extended timeframes. It supports 200 MHz state acquisition for synchronous measurements, advanced trigger capabilities, and time-correlated measurements with external oscilloscopes. A 12.1-inch color display and 102-channel standalone configuration enhance usability and analysis performance.
This analyzer allows flexible trigger setups using graphical tools, supports offline analysis on Windows PCs, and facilitates inspection of digital signals affected by analog behavior.
Testwall can supply the used Keysight (Agilent) 1681AD, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 1681AD.
