Tektronix

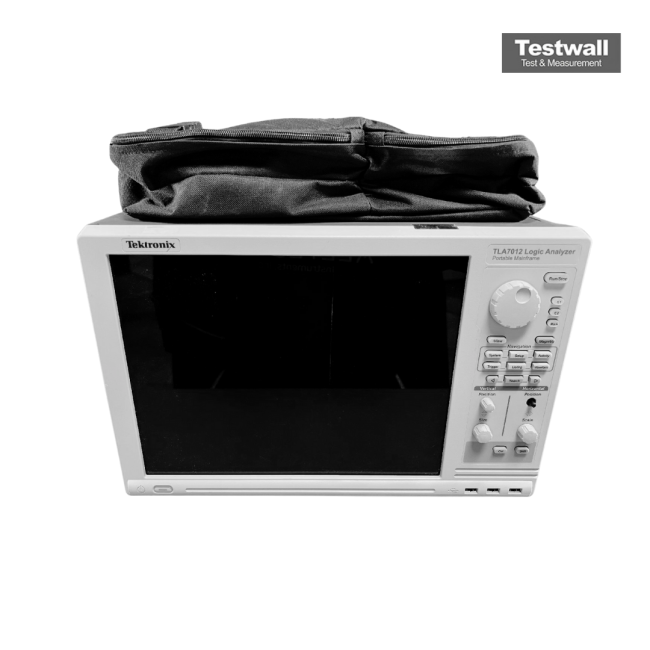

Tektronix TLA7012
Mainframe Logic Analyser
136 Channels Number of Channels
2 GHz Timing, 235 MHz State Maximum Sample Rate
Up to 128 Mb per channel Memory Depth
Portable Mainframe Form Factor
2 Slots Number of Module Slots
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum Sample Rate | 2 GHz Timing, 235 MHz State |
| Memory Depth | Up to 128 Mb per channel |
| Form Factor | Portable Mainframe |
| Number of Module Slots | 2 Slots |
| Display | 10.4-inch Color LCD Display |
| Operating System | Windows XP Professional |
| Threshold Voltage Range | -8V to +8V |
| Input Impedance | 100 kΩ, 8 pF |
| Power Requirements | 100-240V AC, 50/60 Hz |
| Model | TLA7012 |
|---|
The Tektronix TLA7012 Portable Mainframe is a modular system supporting TLA logic analyzer and pattern generator modules. It operates on a Microsoft Windows XP Professional PC platform and can function as a master or expansion unit, ideal for high channel count and bus-intensive environments.
This mainframe is engineered for large-scale signal capture and debug, with flexible configurations tailored to complex system development and integration workflows.
Testwall can supply the used Tektronix TLA7012, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7012.
