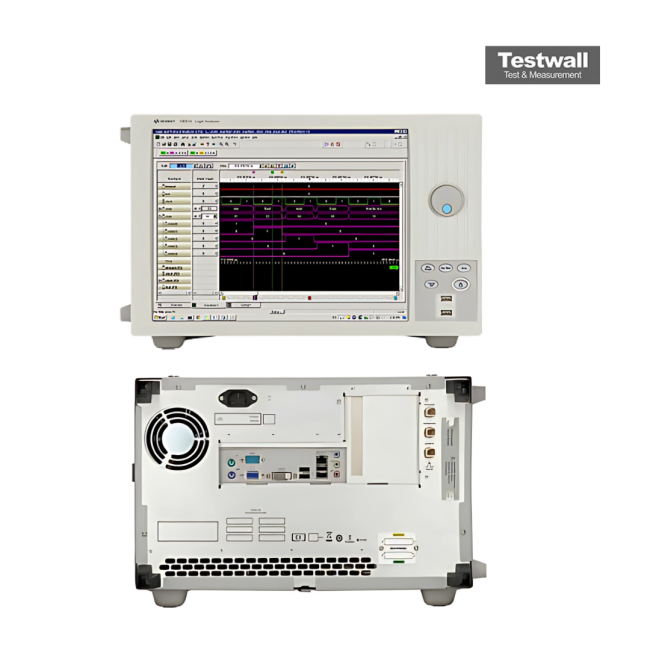

Keysight (Agilent) 16851A
| Attribute | Value |
|---|---|
| Number of Channels | 34 Channels |
| Maximum Sample Rate | 2 GSa/s |
| Maximum Timing Resolution | 500 ps |
| Memory Depth | Up to 2 Mb per channel |
| Threshold Voltage Range | -6V to +6V |
| Input Voltage Range | -20V to +20V |
| Minimum Detectable Pulse Width | 1 ns |
| Form Factor | USB Modular Logic Analyzer Module |
| Compatible Platform | Keysight U4154A AXIe-based Logic Analyzer / InfiniiVision and Infiniium Oscilloscopes |
| Interface | USB |
Keysight (Agilent) 16851A Options:
- 16851A - 700 - 700 MHz state clock; 1.4 Gbps data rate
- 16851A - 004 - 4 M samples memory depth
- 16851A - 008 - 8 M samples memory depth
- 16851A - 016 - 16 M samples memory depth
- 16851A - 032 - 32 M samples memory depth
- 16851A - 064 - 64 M samples memory depth
- 16851A - 128 - 128 M samples memory depth
| Model | 16851A |
|---|
The Keysight (Agilent) 16851A is a high-speed, compact logic analyzer featuring 34 digital channels and up to 5 GHz timing capture in half-channel mode. With deep memory capabilities of up to 256 M, it captures extended digital events, while its 12.5 GHz zoom resolution and 1.4 GHz trigger sequencer enable precise signal analysis.
Designed for engineers, it supports diverse probing options like flying leads, Mictor, and Soft-Touch Pro, offering flexibility for complex circuit diagnostics.
Testwall can supply the used Keysight (Agilent) 16851A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16851A.
