Keysight (Agilent)

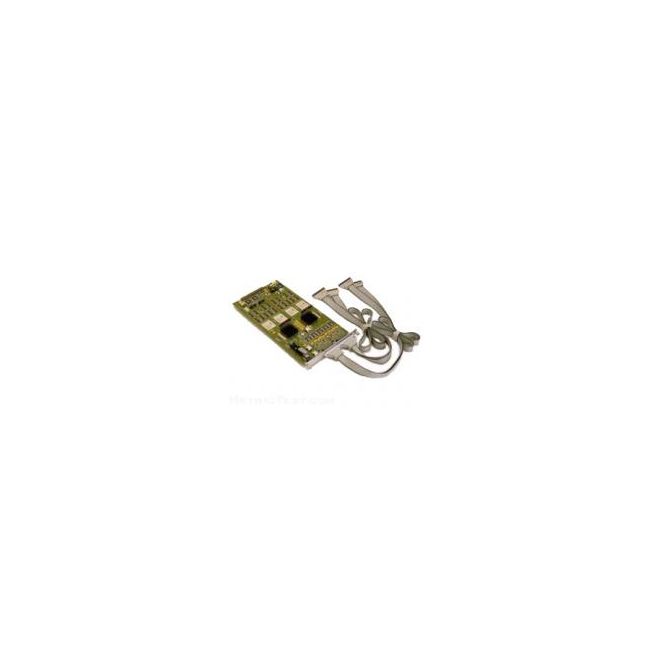

Keysight (Agilent) 16740A
Logic Analyser
34 Channels Number of Channels
4M samples per channel Memory Depth
200 MHz Maximum State Clock Speed
400 MHz (full channel), 800 MHz (half channel) Maximum Timing Speed
1.25 ns (full channel), 625 ps (half channel) Timing Resolution
| Attribute | Value |
|---|---|
| Number of Channels | 34 Channels |
| Memory Depth | 4M samples per channel |
| Maximum State Clock Speed | 200 MHz |
| Maximum Timing Speed | 400 MHz (full channel), 800 MHz (half channel) |
| Timing Resolution | 1.25 ns (full channel), 625 ps (half channel) |
| Module Type | Logic Analyzer Module |
| Form Factor | Compatible with Keysight 16700 Series Logic Analysis System Mainframe |
| Threshold Voltage Range | -6.0 V to +6.0 V, programmable in 50 mV increments |
| Setup/Hold Time | Adjustable setup and hold time window for state acquisition |
| Trigger Sequencer | 12-level trigger sequencer with advanced pattern and edge triggering |
| Model | 16740A |
|---|
The Keysight (Agilent) 16740A Logic Analysis Module features a 200 MHz state speed, 800 MHz timing speed, and a 1M memory depth across 68 channels, ensuring precise digital signal analysis.
Ideal for debugging advanced digital designs, it provides deep visibility into circuit behavior and comprehensive logic analysis capability.
Testwall can supply the used Keysight (Agilent) 16740A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16740A.
