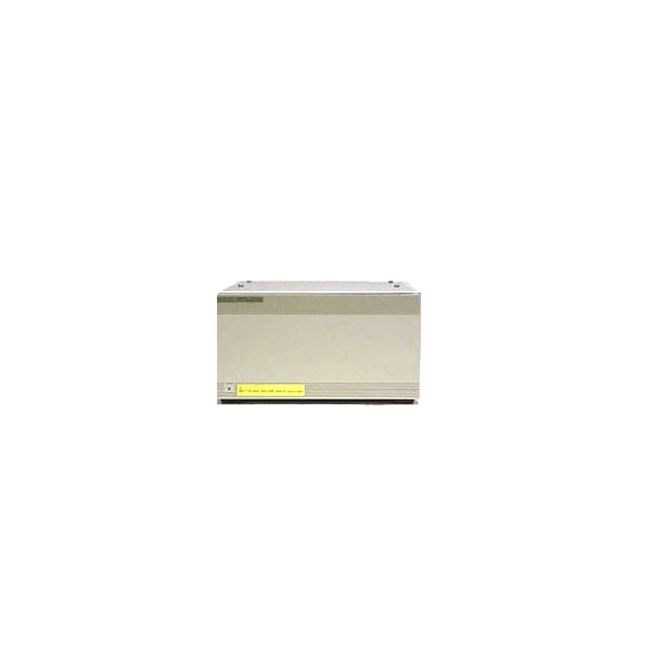

Keysight (Agilent) 16900A
| Attribute | Value |
|---|---|
| Number of Slots | 6 slots (5 module slots + 1 system slot) |
| Maximum Channel Count | Up to 680 channels depending on installed modules |
| State Clock Speed | Up to 4 GHz state analysis |
| Timing Analysis Speed | Up to 32 GHz timing analysis (with 256K memory depth) |
| Memory Depth | Up to 64M samples per channel (module dependent) |
| Operating System | Windows XP / Windows 7 (embedded) |
| Display | Built-in 15-inch XGA color display (1024 x 768 resolution) |
| Interfaces | USB, LAN (100Base-T), GPIB optional |
| Power Requirements | 100–240 VAC, 50/60 Hz, 700 W maximum |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Keysight Technologies 16900A Options:
- 16900A - 014 - Gbit LAN card for 16900 Series mainframes (low profile, copper connection). Installed in mainframe. Must be ordered at time of mainframe purchase.
| Model | 16900A |
|---|
The Keysight (Agilent) 16900A logic analysis system is a 6-slot modular mainframe offering advanced debugging for digital designs. It supports both timing/state analyzers and pattern generator modules, with PCI expansion slots for enhanced flexibility. The system features USB, LAN, serial, parallel ports, and integrates with external video and other instruments.
Its Windows XP Pro-based interface allows intuitive navigation with waveform, listing, packet, and source code views, ensuring comprehensive analysis across multi-bus environments using E5861A multiframe cables.
Testwall can supply the used Keysight (Agilent) 16900A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16900A.
