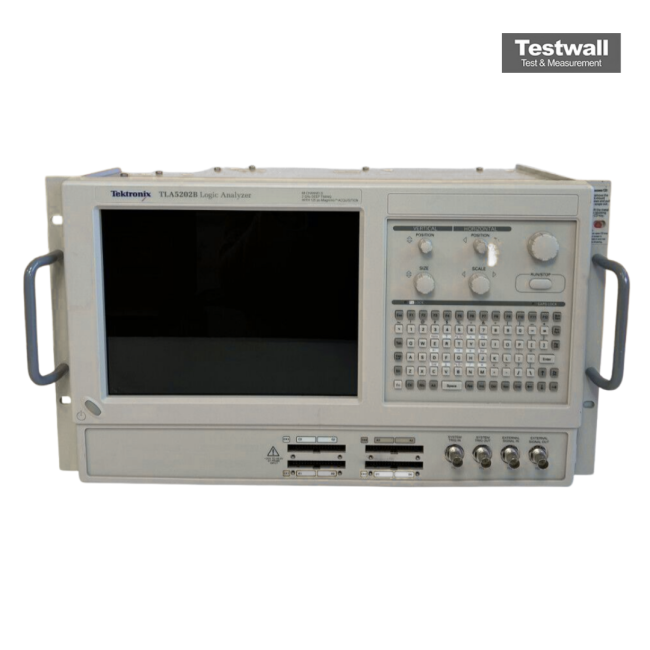

Tektronix TLA5202B
68 Ch 235MHz Benchtop Logic Analyser
136 channels Number of Channels
2 GHz (500 ps timing resolution) Maximum Sample Rate
Up to 128 Mb per channel (with optional memory upgrade) Memory Depth
-2.0 V to +4.0 V, programmable in 10 mV increments Logic Threshold Range
500 ps Minimum Detectable Pulse Width
| Attribute | Value |
|---|---|
| Number of Channels | 136 channels |
| Maximum Sample Rate | 2 GHz (500 ps timing resolution) |
| Memory Depth | Up to 128 Mb per channel (with optional memory upgrade) |
| Logic Threshold Range | -2.0 V to +4.0 V, programmable in 10 mV increments |
| Minimum Detectable Pulse Width | 500 ps |
| Input Impedance | 100 kΩ ± 2% in parallel with 3 pF |
| Maximum Input Voltage | ±15 V (DC + peak AC) |
| Module Slots | 2 logic analyzer module slots |
| Operating System | Windows XP Embedded |
| Display | 15-inch XGA color LCD display (1024 x 768 resolution) |
| Model | TLA5202B |
|---|
The Tektronix TLA5202B logic analyzer features 500 ps timing resolution, 32 Mb record length, and 125 ps MagniVu timing resolution, enabling accurate capture of fast digital signals and elusive timing anomalies.
Designed for both novice and expert users, it offers timing/state analysis, glitch detection, and setup/hold validation via advanced triggering and iView™ analog-digital correlation.
Testwall can supply the used Tektronix TLA5202B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA5202B.
