Keysight (Agilent) 16911A
| Attribute | Value |
|---|---|
| Channel Count | 136 Channels |
| Maximum State Speed | 800 MHz |
| Maximum Timing Speed | 4 GHz (half channel mode) |
| Memory Depth | 64 Msa per channel |
| Threshold Accuracy | ±(50 mV + 1.5% of threshold setting) |
| Threshold Range | -6 V to +6 V |
| Module Type | Logic Analyzer Module |
| Compatible Mainframe | Keysight 16900 Series Logic Analysis System |
| Input Voltage Range | ±40 V (maximum input) |
| Probe Compatibility | E5378A, E5379A, E5380A Series Probe Cables |
| Model | 16911A |
|---|

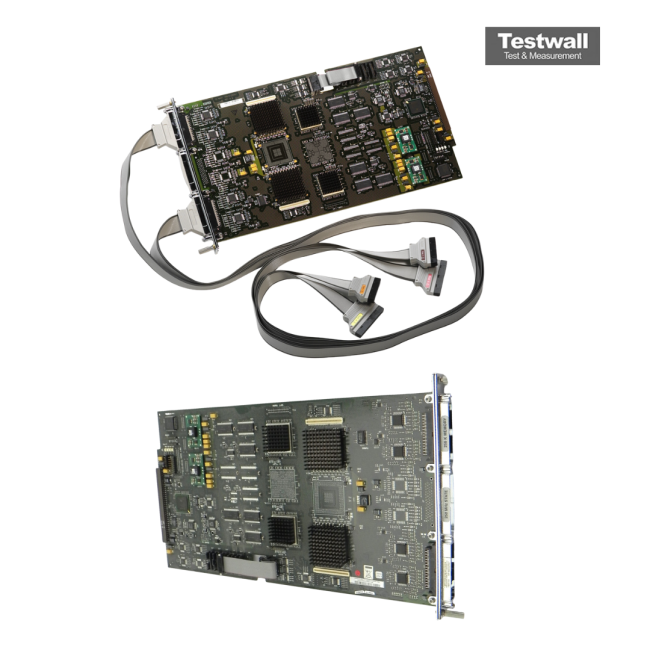

The Keysight (Agilent) 16911A is a 68-channel logic analysis module offering 4 GHz timing analysis with 250 ps resolution and up to 32M acquisition memory. It provides 1.0 GHz/500 MHz conventional timing and 500 MHz transitional timing for in-depth analysis. The state mode supports clock rates up to 450 MHz and data rates to 500 Mb/s with automated threshold and sampling setups. Eye diagrams on all channels speed up debugging of signal issues.
Options include memory depths from 256K to 32M and enhanced state speeds up to 500 Mb/s. Ideal for high-speed bus testing and advanced digital debugging tasks.
Testwall can supply the used Keysight (Agilent) 16911A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16911A.
