Keysight (Agilent) 16950A
| Attribute | Value |
|---|---|
| Channel Count | 136 Channels |
| Maximum State Clock Speed | 800 MHz |
| Maximum Timing Speed | 4 GHz (half channel), 2 GHz (full channel) |
| Memory Depth | 64 Mbit per channel |
| Threshold Voltage Range | -6V to +6V |
| Minimum Detectable Pulse Width | 500 ps |
| Time Tag Resolution | 4 ns |
| Compatible Logic Analyzer Mainframes | Keysight 16900 Series Logic Analysis Systems |
| Module Form Factor | Single-slot module for 16900 Series mainframe |
| Input Impedance | 100 kΩ, 8 pF |
| Model | 16950A |
|---|

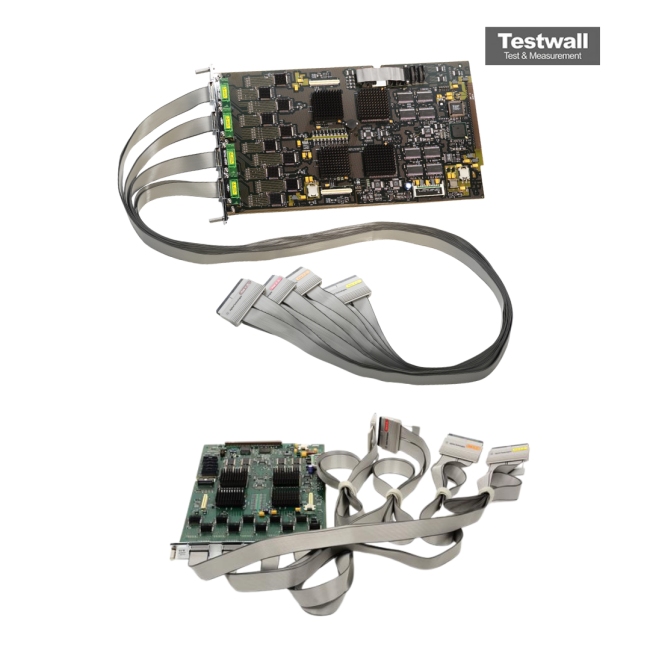

The Keysight-Agilent 16950A is a 68-channel Logic Analysis Module offering 4 GHz timing zoom and state analysis up to 600 MHz. It features 64K memory, 1.2 GHz/600 MHz conventional timing, and 600 MHz transitional timing. It supports state clock rates up to 600 MHz and data rates up to 800 Mb/s, with automated setup for threshold/sample position and simultaneous eye diagrams on all channels.
Options include memory upgrades from 256K to 64M and ANSI Z540 compliant calibration. Ideal for capturing fast digital signals in demanding test environments.
Testwall can supply the used Keysight-Agilent 16950A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight-Agilent 16950A.
