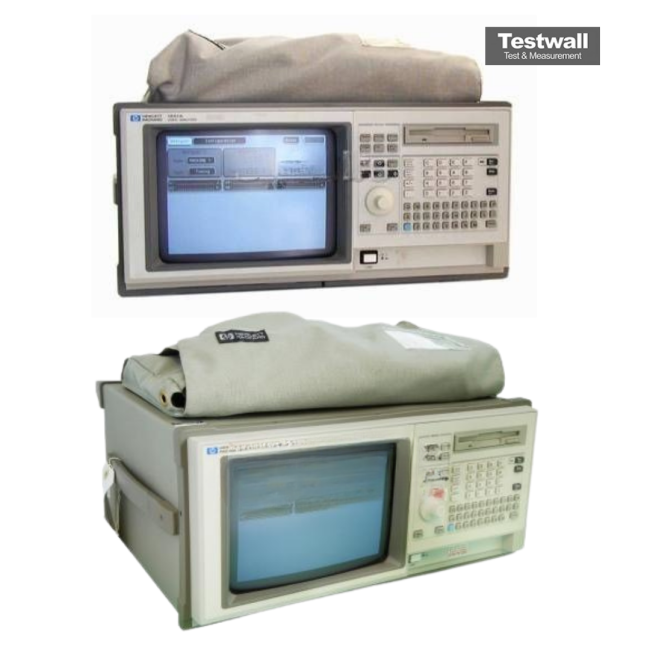

Keysight (Agilent) 1660A
136 Channel 500MHz Timing 100MHz State Logic Analyser
136 Channels Number of Channels
96 Data Channels + 40 State/Timing Channels Logic Analyzer Configuration
100 MHz Maximum State Speed
250 MHz (500 MHz with transitional timing) Maximum Timing Speed
4K Samples per Channel Memory Depth
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Logic Analyzer Configuration | 96 Data Channels + 40 State/Timing Channels |
| Maximum State Speed | 100 MHz |
| Maximum Timing Speed | 250 MHz (500 MHz with transitional timing) |
| Memory Depth | 4K Samples per Channel |
| Minimum Detectable Pulse Width | 3.5 ns |
| Display | Built-in CRT Display |
| Threshold Voltage Range | -6.0 V to +6.0 V, Adjustable in 50 mV Steps |
| Input Impedance | 100 kΩ, 8 pF |
| Interface | HP-IB (GPIB) Interface |
| Model | 1660A |
|---|
The Keysight (Agilent) 1660A Logic Analyzer offers advanced multi-channel analysis with 136 channels, supporting both state and timing modes. Operating at 100 MHz in state mode with two state clocks/qualifiers, it provides 4K state memory per channel or 8K in half-channel mode. Timing analysis supports conventional (250 MHz all channels, 500 MHz half channels), transitional (125 MHz all, 250 MHz half), and glitch timing (125 MHz half channels). Designed for flexibility and detail-rich signal capture, it offers deep insight for digital system debugging and verification.
With built-in RS-232 and HP-IB interfaces, the 1660A integrates easily into existing lab setups for embedded development and validation tasks.
Testwall can supply the used Keysight (Agilent) 1660A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 1660A.
