Keysight (Agilent) 33502A
| Attribute | Value |
|---|---|
| Function | 2-Channel Isolated Amplifier for 33500B Series Waveform Generators |
| Number of Channels | 2 |
| Voltage Amplification | Up to ±12V output amplitude (10x amplification from waveform generator output) |
| Output Voltage Range | ±12V peak |
| Bandwidth | 10 MHz |
| Channel Isolation | 42V peak isolation between channels and from chassis ground |
| Output Current | 200 mA peak |
| Output Impedance | 50 Ohms |
| Power Supply | Powered directly by the 33500B Series waveform generator via rear-panel connector |
| Compatible Instruments | Keysight 33500B Series Waveform Generators (33509B, 33510B, 33511B, 33512B, 33519B, 33520B, 33521B, 33522B) |
Keysight Technologies 33502A Options:
- 33502A - 001 - Rear panel output connectors
- 33502A - 0B0 - Delete printed manuals
| Model | 33502A |
|---|

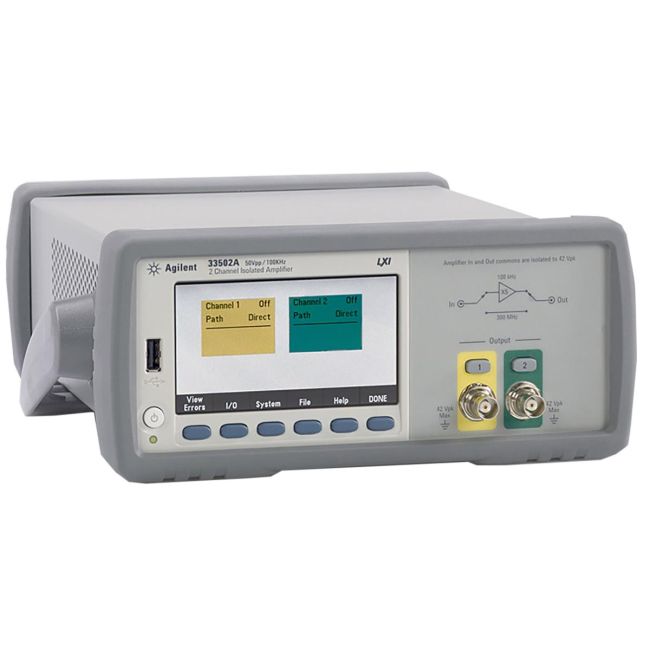

The Keysight (Agilent) 33502A is a dual-channel high voltage output amplifier featuring an isolated analog front end delivering up to 50 Vpp (±25 V). It offers a full-power bandwidth of 100 kHz at 50 Vpp, a small-signal bandwidth exceeding 300 kHz, and a minimum slew rate of 20 V/ms. The amplifier maintains exceptionally low distortion at < 0.01% THD+N @ 10 kHz and 40 Vpp, and provides a maximum output drive of 200 mA.
This amplifier is tailored to extend the output capabilities of function generators, ensuring low distortion and higher voltage signal reproduction. It’s ideal for precise and demanding applications.
Testwall can supply the used Keysight (Agilent) 33502A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 33502A.
