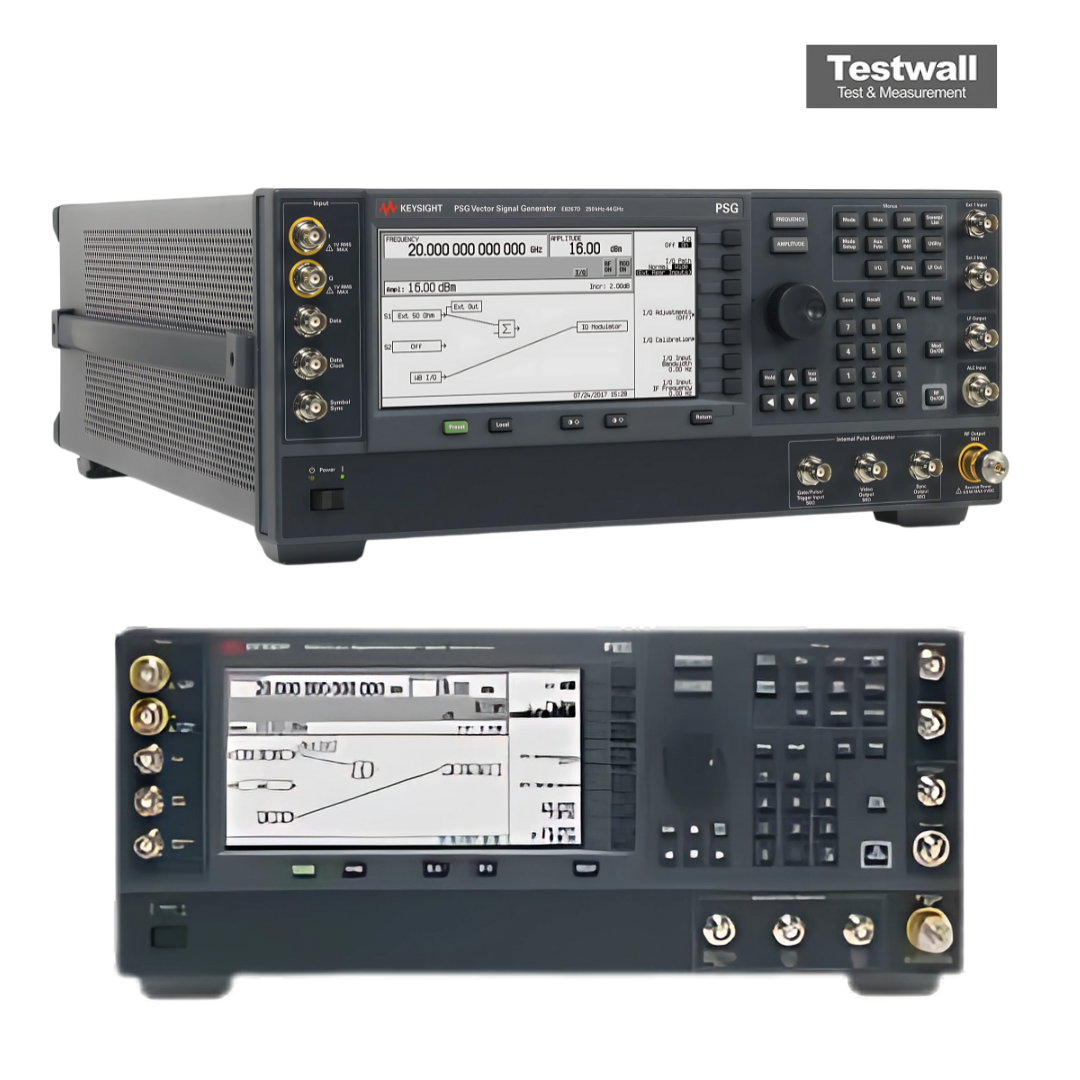

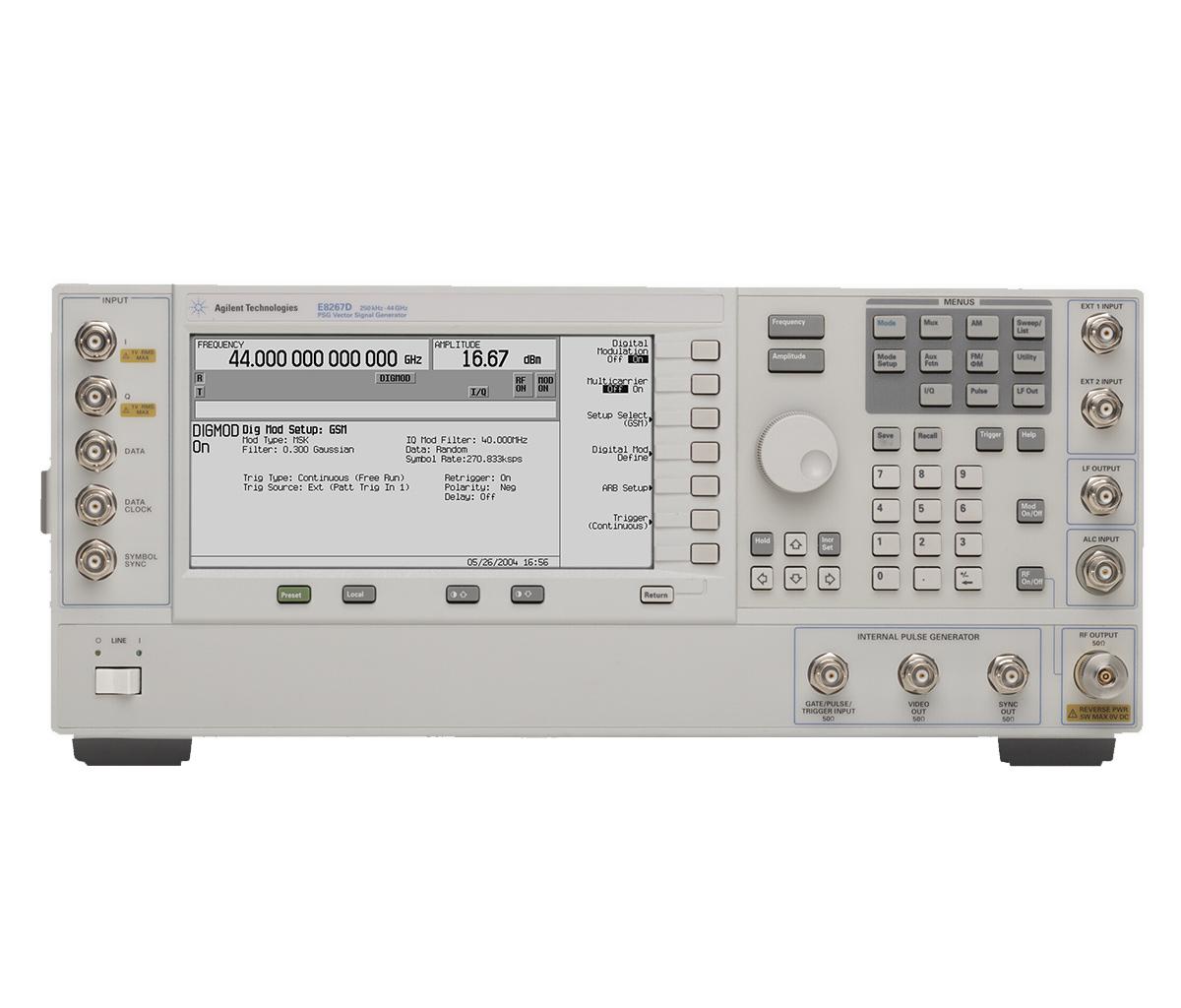

Keysight (Agilent) E8267D
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 20 GHz |
| Frequency Resolution | 0.001 Hz |
| Switching Speed | < 16 ms (typ.) |
| Timebase Aging | 10 MHz, ±3 × 10⁻⁸ per year |
| Interfaces | GPIB, LAN, RS-232 |
| Output Power | up to +18 dBm at 3.2 to 20 GHz; +14 dBm at 20 to 32 GHz, +12 dBm at 32 to 40 GHz, +10 dBm at 40 to 44 GHz (spec.) |
| SSB Phase Noise | -110 dBc/Hz at 10 GHz, 20 kHz offset (spec.) |
| Modulation | I/Q, AM, FM, ΦM, pulse (depending on configuration) |
| Level Accuracy | ±0.6 dB at 250 kHz to 2 GHz (spec.) |
| Harmonics | < -55 dBc at 2 to 20 GHz (spec.) |
| Non-Harmonics | < -80 dBc at 250 MHz to 1 GHz, > 3 kHz offset (spec.) |
| Modulation Bandwidth | 80 MHz with external I/Q (±1 dB, typ.); internal baseband 100 MSa/s, 64 MSa (depending on configuration) |
| Sweep Modes | step sweep, list mode, ramp sweep, power sweep |
| RF Output Connector | 3.5 mm male or Type-N female; 2.4 mm male (depending on configuration) |
| Dimensions | 426 × 178 × 515 mm |
| Weight | < 25 kg |
Available configurations
| Model | Frequency range | Configuration |
| E8267D-520 | 100 kHz to 20 GHz | Vector signal generator |
| E8267D-532 | 100 kHz to 31.8 GHz | Vector signal generator |
| E8267D-544 | 100 kHz to 44 GHz | Vector signal generator |
Keysight (Agilent) E8267D-520 Options:
Options available for the Keysight (Agilent) PSG vector signal generator (E8267D). Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- E8267D - 601 - Internal baseband generator, 8 MSa memory
- E8267D - 602 - Internal baseband generator, 64 MSa memory
- E8267D - 005 - Internal hard disk for waveform storage
- E8267D - 015 - Wideband external I/Q inputs
- E8267D - 403 - Calibrated AWGN
- E8267D - UNT - AM, FM and phase modulation
- E8267D - UNU - Pulse modulation
- E8267D - UNW - Narrow pulse modulation
- E8267D - UNX - Ultra-low phase noise
- E8267D - 007 - Analog ramp sweep
- E8267D - 1EA - High output power
- E8267D - 1EM - RF output moved to rear panel
- E8267D - 1CM - Rack mount kit
- E8267D - 1CN - Front handle kit
- E8267D - 1CP - Rack mount kit with handles
The Keysight (Agilent) E8267D-520 PSG Vector Signal Generator offers precision signal generation from 250 kHz to 20 GHz, supporting digital vector modulation with broad baseband support. It features high IP3, ultra-low phase noise, and minimal spur and harmonic distortion. Sweep modes include ramp, step, and list, with a fully synthesized local oscillator.
Ideal for advanced communication testing and radar applications, it ensures accurate signal emulation through flexible modulation and sweep capabilities.
Testwall can supply the used Keysight (Agilent) E8267D-520, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8267D-520.
Options and configurations
- Frequency Range: 100 kHz to 20 GHz (Opt. 520)
- Output Power: up to +18 dBm at 3.2 to 20 GHz (Opt. 520); +14 dBm at 20 to 32 GHz, +12 dBm at 32 to 40 GHz, +10 dBm at 40 to 44 GHz (Opt. 532/544) (spec.)
- SSB Phase Noise: -110 dBc/Hz at 10 GHz, 20 kHz offset (spec.); -120 dBc/Hz at 10 GHz, 10 kHz offset with Opt. UNY (spec.)
- Modulation: I/Q, AM, FM, ΦM (Opt. UNT), pulse (Opt. UNU/UNW); PSK, QAM, FSK, MSK with Opt. 602
- Modulation Bandwidth: 80 MHz with external I/Q (±1 dB, typ.); 2 GHz with Opt. 016 (nom.); internal baseband 100 MSa/s, 64 MSa (Opt. 602)
- Sweep Modes: step sweep, list mode, ramp sweep (Opt. 007), power sweep
- RF Output Connector: 3.5 mm male or Type-N female (Opt. 1ED) (Opt. 520); 2.4 mm male (Opt. 532/544)
