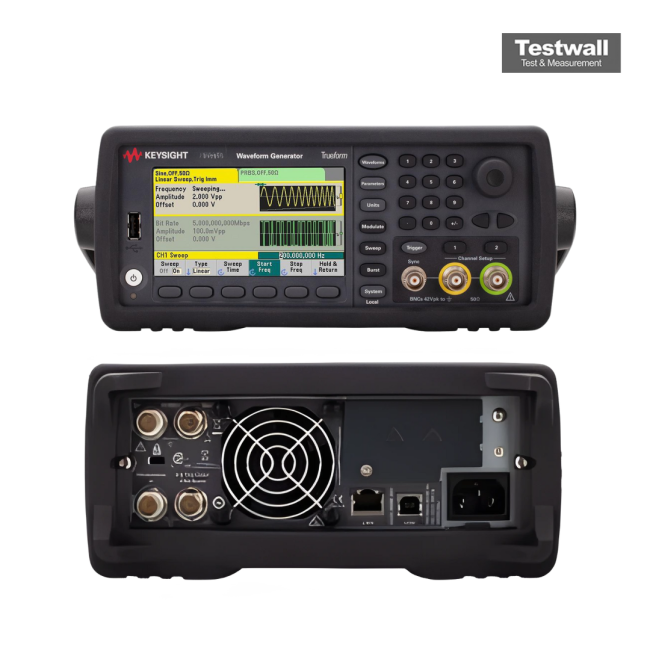

Keysight (Agilent) 33612A
| Attribute | Value |
|---|---|
| Channels | 2 channels |
| Sample Rate | 660 MSa/s |
| Vertical Resolution | 14 bit |
| Jitter | < 1 ps rms |
| Output Impedance | 50 Ω (nom.) |
| Frequency Range | 1 µHz to 80 MHz (sine, max. 8 Vpp); up to 50 MHz (square, pulse, max. 10 Vpp); up to 800 kHz (ramp, triangle) |
| Amplitude | 1 mVpp to 10 Vpp into 50 Ω (2 mVpp to 20 Vpp open circuit) |
| Modulation | AM, FM, ΦM, FSK, BPSK, PWM, Sum |
| Waveforms | sine, square, ramp, triangle, pulse, noise, arbitrary, DC |
| Arbitrary Memory | 4 MSa per channel |
| Rise/Fall Time | 2.9 ns at ≤ 4 Vpp, 4.0 ns at > 4 Vpp (nom.) |
| Sweep Modes | linear, log, list (up to 128 frequencies) |
| Timebase Aging | ±1 ppm per year |
| Interfaces | LAN (LXI), USB, GPIB |
| Display | 4.3 in color TFT, 480 × 272 |
| Dimensions | 261.1 × 103.8 × 303.2 mm |
| Weight | 3.5 kg |
The Keysight (Agilent) 33612A waveform generator features Trueform technology, enabling pure sine waves with 5x lower harmonic distortion and pulses up to 80 MHz with <1 ps jitter. Its 660 MSa/s sampling rate and 14-bit resolution ensure high-fidelity waveforms with 1 mVpp to 10 Vpp amplitude control.
With 4 MSa/channel standard memory (expandable to 64 MSa/channel), waveform editing tools, and versatile connectivity (USB, LAN, GPIB optional), it is ideal for demanding test applications.
Testwall can supply the used Keysight (Agilent) 33612A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 33612A.
Options and configurations
- Arbitrary Memory: 4 MSa per channel (64 MSa per channel with Opt. MEM)
- Timebase Aging: ±1 ppm per year (±0.1 ppm with Opt. OCX)
- Interfaces: LAN (LXI), USB, GPIB (Opt.)
