Tektronix

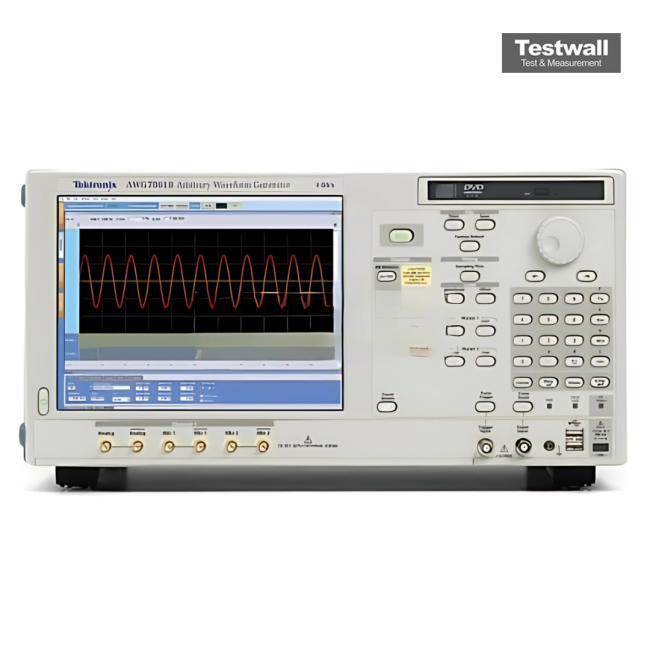

Tektronix AWG7061B
Arbitrary Waveform Generator
600 MS/s Sample Rate
240 MHz Analog Bandwidth
10-bit DAC Vertical Resolution
1 channel Number of Channels
Up to 64 MS (with option) Waveform Memory
| Attribute | Value |
|---|---|
| Sample Rate | 600 MS/s |
| Analog Bandwidth | 240 MHz |
| Vertical Resolution | 10-bit DAC |
| Number of Channels | 1 channel |
| Waveform Memory | Up to 64 MS (with option) |
| Amplitude Range | 50 mVpp to 2 Vpp (into 50 Ω) |
| Sequence Depth | Up to 32,000 steps |
| Output Impedance | 50 Ω |
| Clock Reference | Internal/External reference clock |
| Operating System | Windows XP Embedded |
| Model | AWG7061B |
|---|
The Tektronix AWG7061B is a high-performance single-channel arbitrary waveform generator offering 6 GS/s sampling rate and 8-bit resolution, ensuring precise signal fidelity for RF and digital signal applications.
It supports advanced sequencing, looping, and triggering features for complex waveform generation and signal testing environments.
Testwall can supply the used Tektronix AWG7061B, fully tested.
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality.
Please contact us directly if you need calibration or repair of the Tektronix AWG7061B..
