Keysight (Agilent)

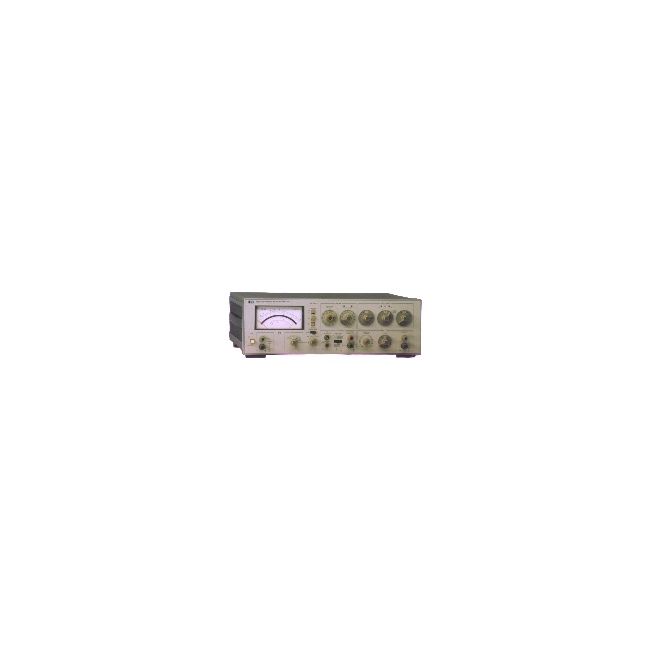

Keysight (Agilent) 339A
10Hz-110KHz Distortion Measurement Set
20 Hz to 20 kHz Frequency Range
0.001% to 100% Distortion Measurement Range
100 mV to 300 V RMS Input Voltage Range
Less than 0.0018% (at 1 kHz) Residual Distortion
100 kΩ Input Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz to 20 kHz |
| Distortion Measurement Range | 0.001% to 100% |
| Input Voltage Range | 100 mV to 300 V RMS |
| Residual Distortion | Less than 0.0018% (at 1 kHz) |
| Input Impedance | 100 kΩ |
| Measurement Function | Total Harmonic Distortion (THD) and RMS Level |
| Output Level | 600 mV RMS into 600 Ω |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 55°C |
| Display Type | Analog Meter with dB and Percentage Scales |
Keysight Technologies 339A Options:
- 339A - 001 - Increased Sensitivity
- 339A - W30 - Extended Repair Service
| Model | 339A |
|---|
The Keysight (Agilent) 339A Distortion Measurement Set is a complete system integrating a Total Harmonic Distortion Analyzer, True RMS Voltmeter, and Sine Wave Oscillator. It measures THD as low as 0.0018% across a 10 Hz to 110 kHz band, including harmonics up to 330 kHz. The distortion range spans 0.01% to 100% full scale (-80 dB to 0 dB) across nine ranges. Its oscillator operates from 10 Hz to 100 kHz over four overlapping decades, delivering outputs from <1 mV to >3 V RMS into 600 ohms with 10 dB/step level control and vernier adjustment. The voltmeter covers 1 mV to 300 V RMS full scale (-60 dB to +50 dB), calibrated in dBV and dBm into 600 ohms.
Engineers rely on the 339A for accurate, high-resolution distortion and signal analysis in audio, production, and QA test environments.
Testwall can supply the used Keysight (Agilent) 339A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 339A.
