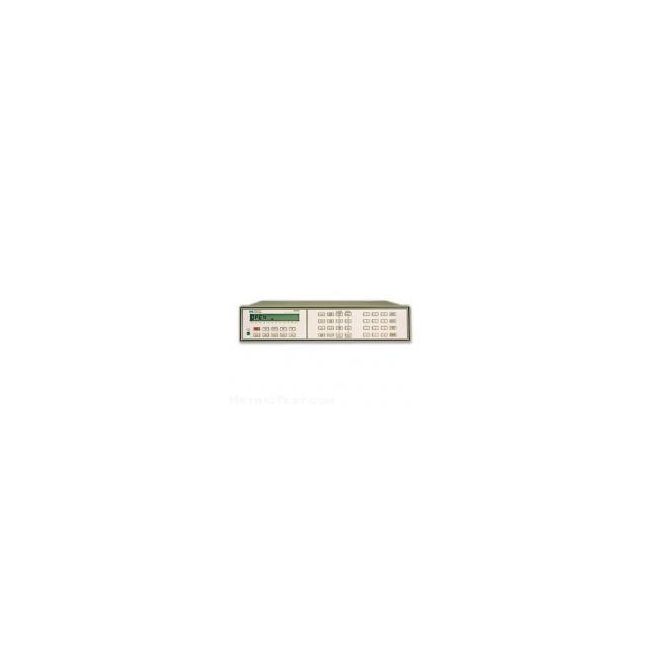

Keysight (Agilent) 3488A
| Attribute | Value |
|---|---|
| Form Factor | Mainframe / Switch/Control Unit |
| Number of Slots | 5 slots for plug-in modules |
| Interface | HP-IB (IEEE-488 / GPIB) |
| Power Requirements | 100/120/220/240 VAC, 48-66 Hz |
| Power Consumption | 175 VA maximum |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Dimensions (W x H x D) | 425 mm x 133 mm x 497 mm (16.7 in x 5.25 in x 19.6 in) |
| Weight | 9.5 kg (21 lbs) without plug-in modules |
| Compatible Plug-In Modules | 44470A, 44471A, 44472A, 44473A, 44474A, 44475A, 44476A, 44477A, 44478A, 44479A |
Keysight Technologies 3488A Options:
- 3488A - 010 - 10 Channel Relay Multiplexer Module
- 3488A - 011 - 10 Channel General Purpose Relay Module
- 3488A - 012 - Dual 4 Channel VHF Switch Module
- 3488A - 013 - 4x4 Matrix Switch Module
- 3488A - 014 - 16 Bit Digital Input/Output Module
- 3488A - 015 - Breadboard Module
- 3488A - 016 - Microwave Switch Module (DC to 18 GHz, SMA connectors)
- 3488A - 017 - Form-C Relay Module
- 3488A - 018 - Microwave Switch Module (HP 44476B, multi-port 50-ohm coaxial)
- 3488A - 019 - 1.3 GHz 50 ohm Multiplexer
- 3488A - 020 - 1.3 GHz 75 ohm Multiplexer
- 3488A - 401 - Side Handle Kit (HP P/N 5061-1171)
- 3488A - 907 - Front Handle Kit (HP P/N 5061-1170)
- 3488A - 908 - Rack Flange Kit (HP P/N 5061-1168)
- 3488A - 909 - Rack Flange with Handles (HP P/N 5061-1169)
- 3488A - 910 - Extra Operating & Service Manuals
- 3488A - W30 - Three Year Hardware Support
| Model | 3488A |
|---|
The Keysight (Agilent) 3488A Switch/Control Unit supports up to five plug-in switch/control modules, offering versatile, GPIB-programmable switching for multi-channel measurements. It ensures excellent signal integrity and isolation, ideal for high-performance production testing. Modules include multiplexer, relay, VHF, matrix, digital I/O, microwave, and more.
Designed for bench and lab testing, the 3488A provides a flexible, cost-effective automation solution. It is compatible with the newer 3499 Switch Family, enabling expanded capabilities.
Testwall can supply the used Keysight (Agilent) 3488A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 3488A.
