Keysight (Agilent)
Keysight (Agilent) 34461A
Digital Multimeter, 6.5 Digit
6½ digits Number of Digits
100 mV to 1000 V DC Voltage Measurement Range
0.0030% DC Voltage Basic Accuracy
100 mV to 750 V AC Voltage Measurement Range
100 Ω to 100 MΩ Resistance Measurement Range
| Attribute | Value |
|---|---|
| Number of Digits | 6½ digits |
| DC Voltage Measurement Range | 100 mV to 1000 V |
| DC Voltage Basic Accuracy | 0.0030% |
| AC Voltage Measurement Range | 100 mV to 750 V |
| Resistance Measurement Range | 100 Ω to 100 MΩ |
| DC Current Measurement Range | 100 µA to 10 A |
| Frequency Measurement Range | 3 Hz to 300 kHz |
| Display Type | 4.3-inch color graphical display |
| Connectivity | USB, LAN (LXI Core), GPIB (optional) |
| Reading Rate | Up to 1,000 readings per second |
Keysight (Agilent) 34461A Options:
- 34461A - SEC - NISPOM and file security for Truevolt Series DMMs – factory enabled
- 34461A - Z54 - Certificate of calibration – ANSI/NCSL Z540.3-2006, printed
- 34461A - GPB - GPIB interface module for Truevolt Series DMMs – factory installed
- 34461A - 3446GPBU - Add GPIB interface, user-installable
- 34461A - 3446SECU - Enable NISPOM and file security
| Model | 34461A |
|---|

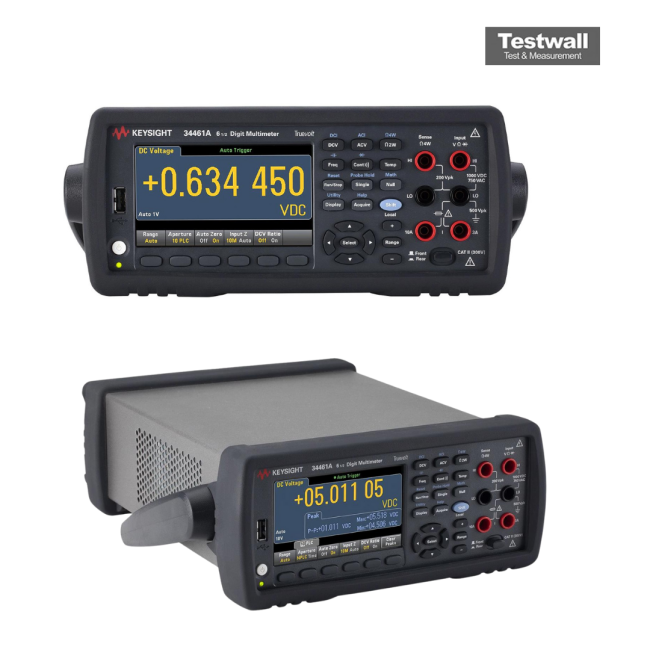

The Keysight (Agilent) 34461A is a 6.5-digit Truevolt digital multimeter designed to deliver high-accuracy data with 35 ppm basic DCV accuracy and advanced graphical analysis on a 4.3-inch display.
It supports statistical charts, USB and LAN connectivity, and low current measurements down to 100 µA, ideal for testing low-power devices and legacy system integration.
Testwall can supply the used Keysight (Agilent) 34461A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 34461A.
