Keysight (Agilent) 346CK40
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 40 GHz |
| Noise Source Output | Excess Noise Ratio (ENR) approximately 15 dB |
| Connector Type | 2.92 mm (K) male connector |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Drive Voltage | +28 V DC |
| Output VSWR (On/Off) | Typically 1.5:1 or less |
| ENR Calibration | Individual calibration data provided, traceable to NIST standards |
| Impedance | 50 Ohm |
| Applications | Noise figure measurements, amplifier testing, receiver testing up to 40 GHz |
| Model | 346CK40 |
|---|

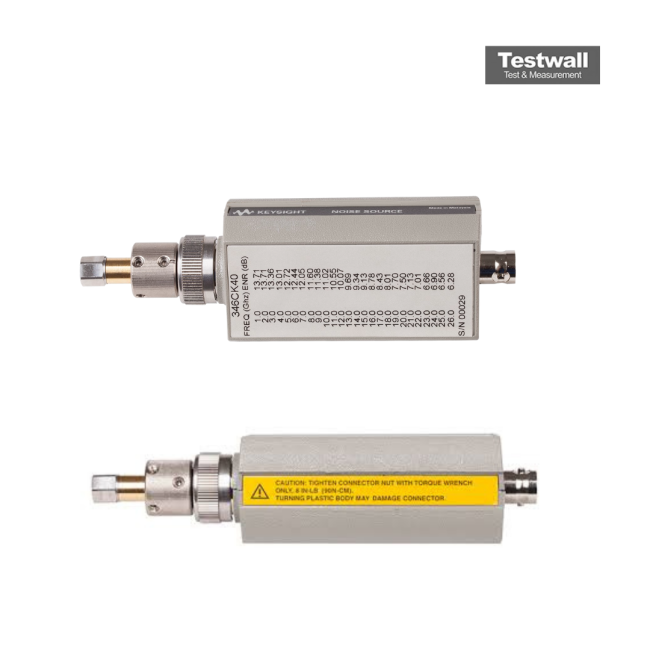

The Keysight (Agilent) 346CK40 is a broadband coaxial noise source designed for high-frequency applications from 1 GHz to 40 GHz, with a low SWR to minimize measurement uncertainty. It features a 2.4 mm coaxial connector and BNC (f) input bias, with an ENR ranging from 14 dB at 1 GHz to 5 dB at 40 GHz (typical).
Ideal for Keysight’s noise figure solutions, this unit simplifies measurements by removing the need for multiple sources across different bands.
Testwall can supply the used Keysight (Agilent) 346CK40, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 346CK40.
