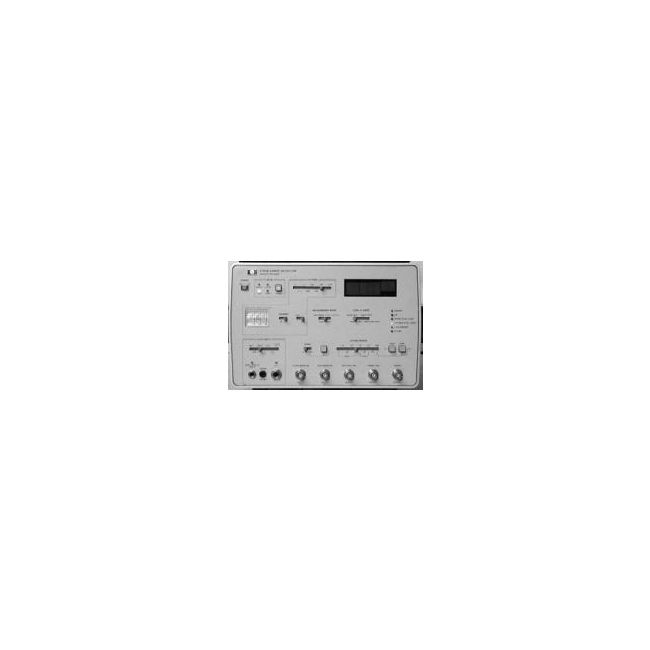

Keysight (Agilent) 3782B
| Attribute | Value |
|---|---|
| Function | DS1 Error Detector / Pattern Generator |
| Interface | DS1 (T1) 1.544 Mb/s |
| Test Patterns | QRSS, 2^15-1, 2^20-1, 2^23-1, All Ones, All Zeros, 1-in-8, 3-in-24 |
| Line Code | AMI and B8ZS |
| Error Insertion | Single, 10^-3, 10^-4, 10^-5, 10^-6, 10^-7 bit error rates |
| Input Impedance | 100 Ohms balanced / 75 Ohms unbalanced |
| Output Level | DSX-1 compliant pulse amplitude and waveshape |
| Measurements | Bit Error Rate (BER), Errored Seconds, Frame Slip, Loss of Frame |
| Framing Formats | D4 (SF) and ESF (Extended Superframe) |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Model | 3782B |
|---|
The Keysight (Agilent) 3782B Error Detector offers comprehensive error analysis, measuring binary, code, and parity errors with precise accuracy. It simultaneously displays error rate, error count, error seconds, and error-free seconds within a single gating period. The unit includes HPIB and Bell Systems configuration and works seamlessly with the 3781B Pattern Generator.
Ideal for detailed testing, it features a preselectable error rate threshold for result printing and enables precise synchronization in advanced testing environments.
Testwall can supply the used Keysight (Agilent) 3782B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 3782B.
