Keysight (Agilent)
Keysight (Agilent) 8980A
800 MHz to 2170 MHz Frequency Range
GSM, GPRS, EGPRS (EDGE), W-CDMA, HSDPA, HSUPA Technology Standards Supported
-120 dBm to +10 dBm Output Power Range
Transmitter power, modulation quality, frequency error, adjacent channel power, bit error rate Measurement Functions
Type-N Female RF Connector Type
| Attribute | Value |
|---|---|
| Frequency Range | 800 MHz to 2170 MHz |
| Technology Standards Supported | GSM, GPRS, EGPRS (EDGE), W-CDMA, HSDPA, HSUPA |
| Output Power Range | -120 dBm to +10 dBm |
| Measurement Functions | Transmitter power, modulation quality, frequency error, adjacent channel power, bit error rate |
| RF Connector Type | Type-N Female |
| Interface | GPIB, LAN (LXI Core 2011), USB |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C |
| Dimensions (W x H x D) | 425 mm x 88 mm x 498 mm (2U half-rack) |
| Weight | Approximately 9 kg (19.8 lbs) |
| Model | 8980A |
|---|

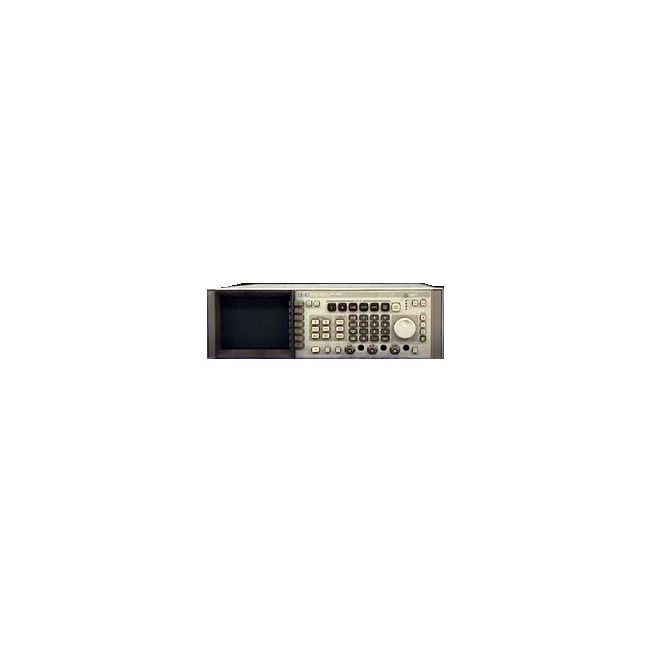

The Keysight (Agilent) 8980A Vector Signal Analyzer features 350 MHz I vs. Q bandwidth, enabling analysis of coherent phase and amplitude modulation. It includes 12-bit digitizing and HP-IB measurement capabilities.
This device displays constellations for modulation formats like QPSK, 16QAM, 64QAM, and evaluates metrics such as closure, lock angle error, and quadrant error.
Testwall can supply the used Keysight (Agilent) 8980A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8980A.
