Keysight (Agilent)
Keysight (Agilent) 4192A
5Hz-13MHz Impedance Analyser
5 Hz to 13 MHz Frequency Range
Z, Y, R, X, G, B, L, C, D, Q, θ, |Z|, |Y| Measurement Parameters
5 mV to 1.1 V RMS (oscillator output) Test Signal Level (Voltage)
±0.1% Basic Impedance Accuracy
0.1 mΩ to 1.2 GΩ Impedance Measurement Range
| Attribute | Value |
|---|---|
| Frequency Range | 5 Hz to 13 MHz |
| Measurement Parameters | Z, Y, R, X, G, B, L, C, D, Q, θ, |Z|, |Y| |
| Test Signal Level (Voltage) | 5 mV to 1.1 V RMS (oscillator output) |
| Basic Impedance Accuracy | ±0.1% |
| Impedance Measurement Range | 0.1 mΩ to 1.2 GΩ |
| DC Bias Voltage | 0 to ±35 V DC |
| Interface / Bus | GPIB (IEEE-488) |
| Display | CRT display with simultaneous dual parameter readout |
| Measurement Time | Fast: approximately 10 ms per measurement |
| Power Requirements | 100/120/220/240 V AC, 48–66 Hz, approximately 150 VA |
Keysight (Agilent) 4192A Options:
- 4192A - HP 16095A - Probe Fixture
- 4192A - HP 16096A - 2-Port Component Test Fixture
- 4192A - HP 16097A - Accessory Kit
- 4192A - HP 16047C - Test Fixture
- 4192A - HP 16048A - Test Leads (BNC connector)
| Model | 4192A |
|---|

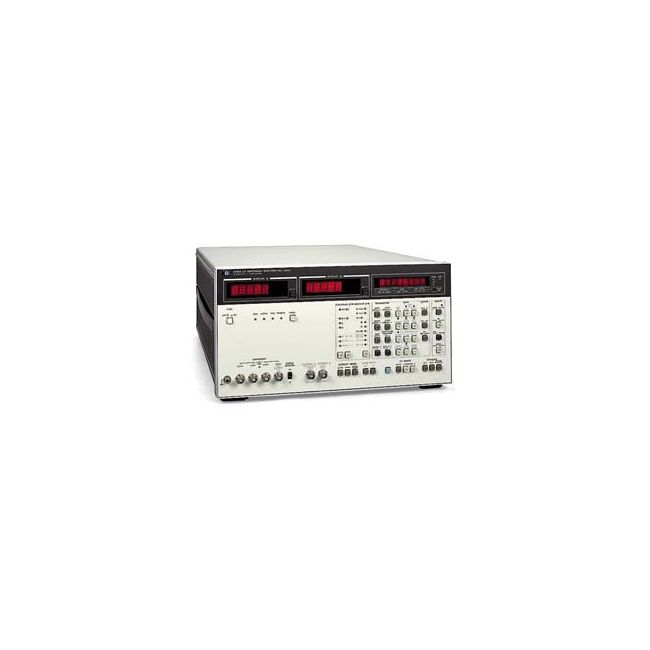

The Keysight (Agilent) 4192A LF Impedance Analyzer is designed for precision impedance and network analysis across a variable frequency range of 5 Hz to 13 MHz. It supports both grounded and floating devices, making it ideal for testing telecommunications filters, A/V circuitry, and discrete components. The analyzer enables swept-frequency measurements and gain-phase analysis, including amplitude, phase, and group delay.
It provides a broad range of impedance parameters including |Z|, |Y|, Theta, R, X, G, B, L, C, D, Q, Delta, and Delta%, offering versatile characterization of passive and active components. GPIB interface is included for system automation and remote operation.
Testwall can supply the used Keysight (Agilent) 4192A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 4192A.
