Keysight (Agilent)
Keysight (Agilent) 5006A
Signature Analyser
DC to 6 GHz Frequency Range
6 Ports Number of Ports
Up to 130 dB Dynamic Range
-45 dBm to +10 dBm Output Power Range
3.5 mm (f) / SMA Compatible Connector Type
| Attribute | Value |
|---|---|
| Frequency Range | DC to 6 GHz |
| Number of Ports | 6 Ports |
| Dynamic Range | Up to 130 dB |
| Output Power Range | -45 dBm to +10 dBm |
| Connector Type | 3.5 mm (f) / SMA Compatible |
| Measurement Parameters | S-parameters, Impedance, Admittance, Group Delay |
| IF Bandwidth | 1 Hz to 15 MHz |
| Trace Noise | 0.001 dB RMS at 10 kHz IF Bandwidth |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C |
| Model | 5006A |
|---|

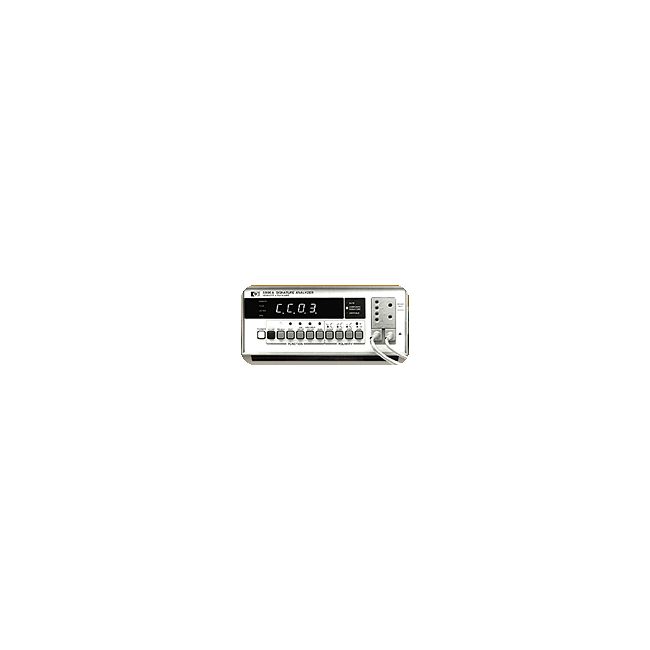

The Keysight (Agilent) 5006A Signature Analyzer uses patented signature analysis to quickly identify faults in digital circuits, generating a 16-bit cyclic redundancy code for data blocks.
Designed for production testing, depot repair, and field service, the 5006A compares stored or printed reference signatures, using features like composite signature, signature memory, and HP-IB programmability.
Testwall can supply the used Keysight (Agilent) 5006A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 5006A.
